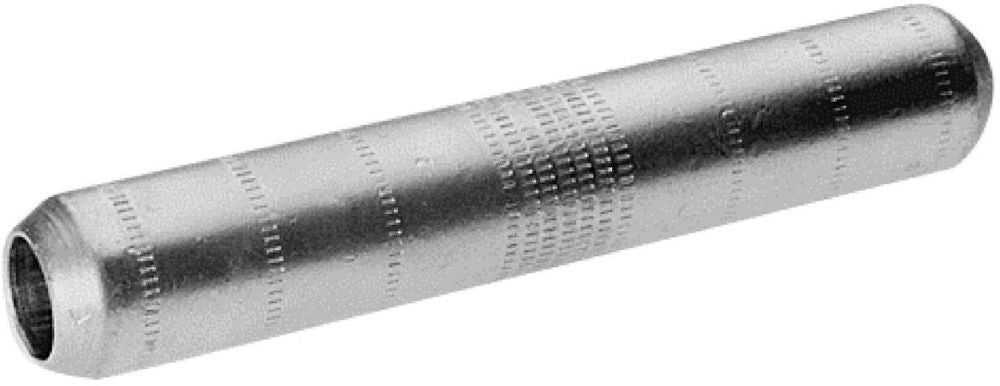

Copper Seamless Barrel is Designed with Tapered End per EEI Standard TD160, Indicating Use on Voltages 5kV Through 35KV; This Aids in Preventing Corona Emission and Simplifies Taping for Lower Installation Cost; Barrel also Features an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damage of the Wire Strands During Insertion; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement; RoHS Compliant

Specifications:

Type: Centre Wire Stop
Voltage Rating: 600 V to 35 KV
Conductor Size: 500 KCMIL
Conductor Material: Copper
Color Code: Brown
Barrel Type: Standard
Length: 3.86 Inch
Outer Diameter: 1.06 Inch
Body Material: Electro-Tin Plated Copper
Approval: UL, CSA
