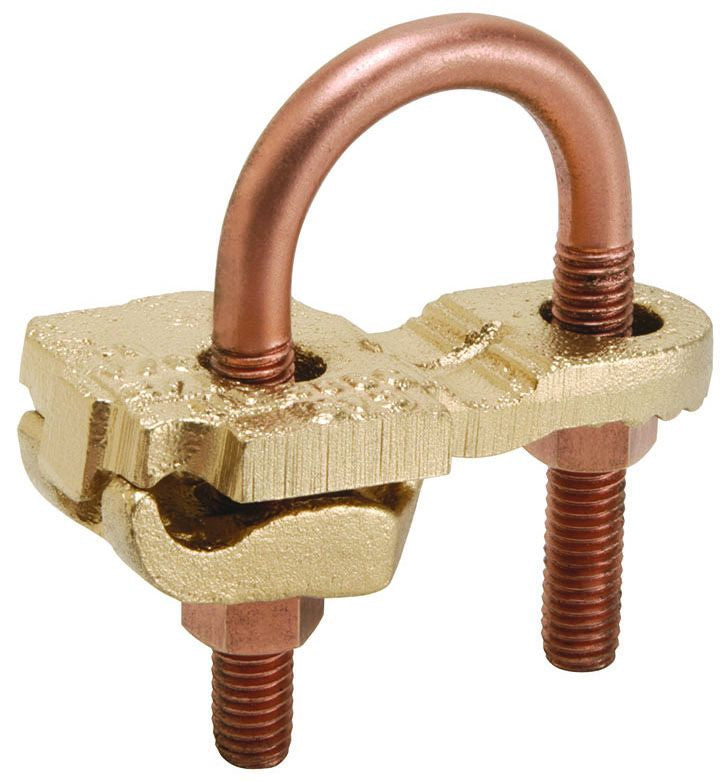

Burndy GAR3903BU Mechanical Grounding Connector

High Conductivity Copper Ground Connector for Connecting a Small to Medium Range Copper Ground Conductor to Water Pipe as Well as Structural and Reinforcing Rod Shapes, Cable Clamp Swivels at 90 Deg, Permits Parallel Grounding of One Pipe or a 90 Deg Cable Run for Grounding Several Parallel Pipes, 1-Wrench Installation, Simplified Installation, Long Lasting Corrosion Resistance and Acceptable for Direct Burial in Earth or Concrete; RoHS Compliant

Specifications:

Conductor Size: 4 to 4/0 AWG
IPS Size: 1-1/4 to 2 Inch

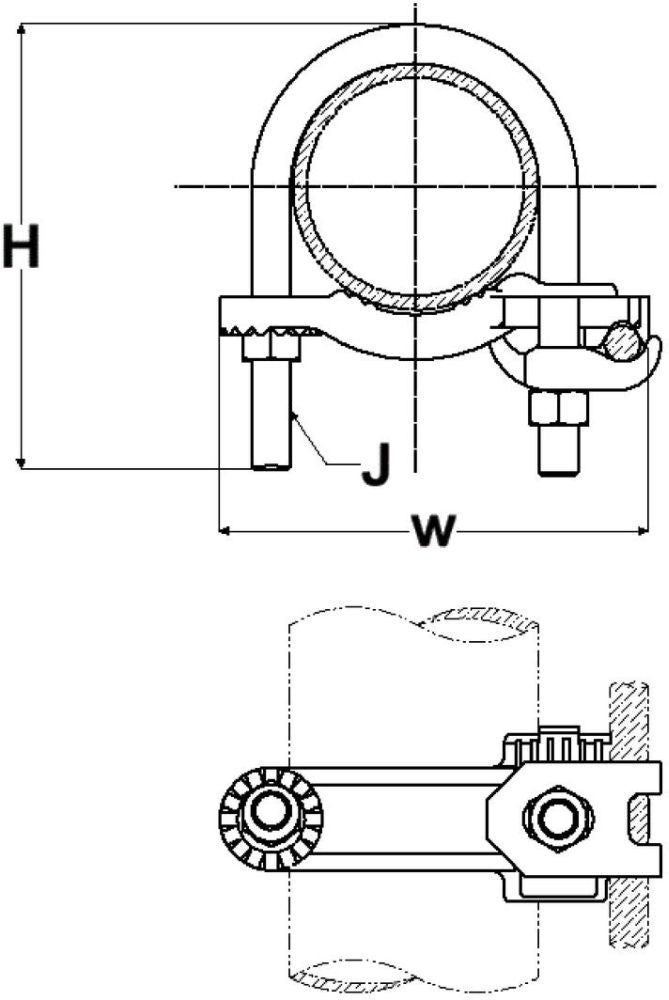

Size: 1.76 Inch Length x 4.25 Inch Width x 4 Inch Height
Installation: U-Bolt to Pipe, Cable Clamp
Material: Copper Alloy
Approval: UL, CSA
Used On: Cable Parallel or 90 Degree to Pipe/Rod, Direct Burial
