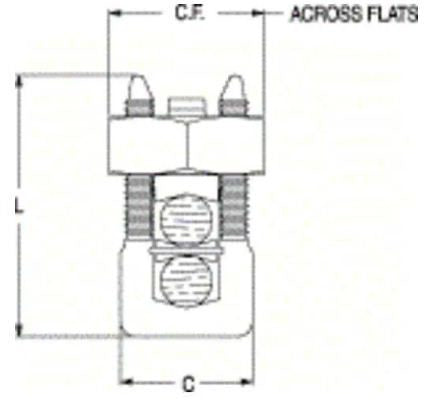

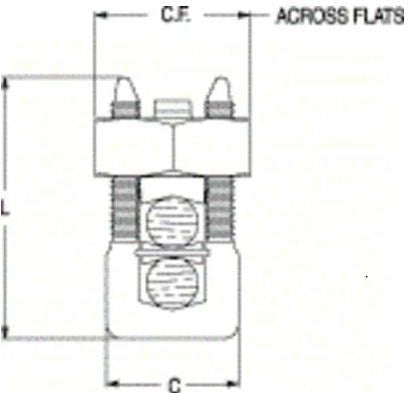

High Strength, Copper Alloy Servit Split-Bolt with Spacer; Spacer Separates Dissimilar Conductors and Provides Long Contact Length that Prevents High Pressure Point Contacts Between Run and Tap Conductors

Specifications:

Installation: Split Bolt
Conductor Material: Copper/Aluminum/ACSR/AAAC/5005
Minimum Run Conductor Size: 10 AWG Solid (Copper/Aluminum), 6 AWG (ACSR/AAAC 5005)
Maximum Run Conductor Size: 4 AWG Solid (Copper/Aluminum), 6 AWG (ACSR/AAAC 5005)
Minimum Tap Conductor Size: 10 AWG Solid (Copper/Aluminum), 6 AWG (ACSR/AAAC 5005)
Maximum Tap Conductor Size: 4 AWG Solid (Copper/Aluminum), 6 AWG (ACSR/AAAC 5005)
Material: Tin Plated Copper
Approval: UL, CSA
