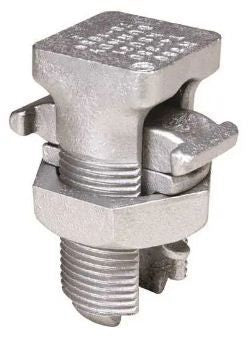

Burndy KSU27 Mechanical Split Bolt Connector

Out of stock
SKU: 232220
Regular price $49.52
OR

High Strength, Copper Alloy Servit Split-Bolt with Spacer; Spacer Separates Dissimilar Conductors and Provides Long Contact Length that Prevents High Pressure Point Contacts Between Run and Tap Conductors

Specifications:

Type: Universal
Installation: Spacer
Conductor Material: Copper/Aluminum/ACSR/AAAC/5005/Steel
Minimum Run Conductor Size: 1 AWG Stranded (Copper/Aluminum), 1 AWG (ACSR/AAAC/5005)
Maximum Run Conductor Size: 3/0 AWG Stranded (Copper/Aluminum), 2/0 AWG (ACSR/AAAC/5005), 1/2 Inch (Steel)
Minimum Tap Conductor Size: 8 AWG Solid (Copper/Aluminum), 8 AWG (ACSR/AAAC/5005)
Maximum Tap Conductor Size: 3/0 AWG Stranded (Copper/Aluminum), 2/0 AWG (ACSR/AAAC/5005), 1/2 Inch (Steel)
Material: Electro Tin Plated High Strength Copper Alloy
Approval: UL 486A
