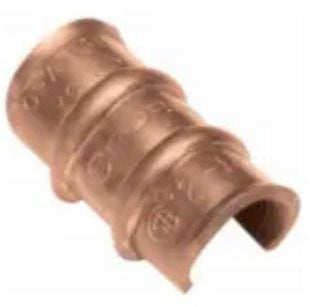

Burndy YC4L12 Compression Tap Connector

Out of stock
SKU: 232227
Regular price $5.25

Bare Copper Range-Taking C-Tap that Allows for Less Inventory as One C-Tap Can Accommodate a Multitude of Wire Combination; Reinforced Rib on the Outside of the C-Tap Increases the Mechanical Holding Strength of the Connection; Creates a Compact Connection that Allows for Easy Taping and Insulating; Connectors Include a Color Dot to Ensure Proper Die and Installation Tooling is Selected; Manufactured from High Conductivity Wrought Copper Providing Low Resistance for Excelled Electrical Conductivity; RoHS Compliant


Voltage Rating: 600 V
Shape: C
Number of Taps: 1
Conductor Material: Copper
Minimum Run Conductor Size: 6 AWG
Maximum Run Conductor Size: 4 AWG
Minimum Tap Conductor Size: 12 AWG Stranded
Maximum Tap Conductor Size: 6 AWG Stranded
Die Index: 10
Body Material: Copper
Approval: UL 467, CSA
