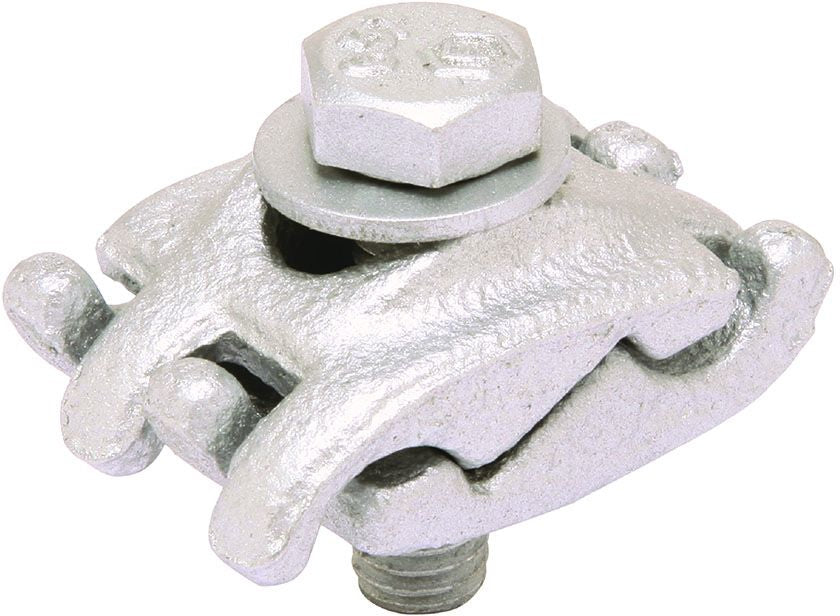

Burndy UC2W28L Mechanical Tap Clamp Connector

Out of stock
SKU: 232229
Regular price $34.94
OR

Interlocking Finger Design Accommodates Large Range of Conductor Sizes; Clamped with Plated Steel Bolt

Specifications:

Type: Universal Parallel Clamp
Installation: Parallel Groove
Conductor Material: Copper/Aluminum/ACSR/6201/5005/Copperweld/Steel
Minimum Run Conductor Size: 2 AWG Solid (Copper/Aluminum), 3 AWG (ACSR/6201/5005), 7 AWG (Copperweld), 4 AWG Stranded (Steel)
Maximum Run Conductor Size: 4/0 AWG Stranded (Copper/Aluminum), 4/0 AWG (ACSR/6201/5005), 6 AWG (Copperweld), 3 AWG Stranded (Steel)
Minimum Tap Conductor Size: 2 AWG Solid (Copper/Aluminum), 3 AWG (ACSR/6201/5005), 7 AWG (Copperweld), 4 AWG Stranded (Steel)
Maximum Tap Conductor Size: 4/0 AWG Stranded (Copper/Aluminum), 4/0 AWG (ACSR 6201/5005), 6 AWG (Copperweld), 3 AWG Stranded (Steel)
Material: Tin Plated Copper
