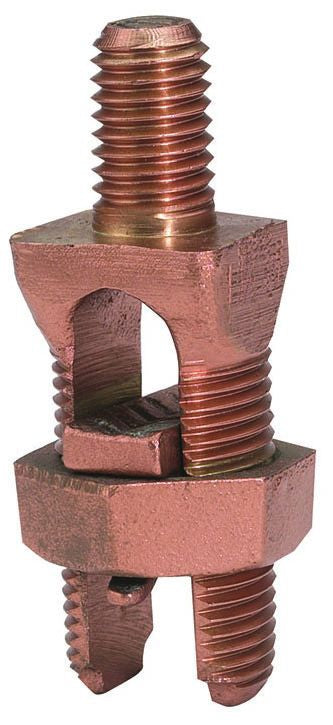

Burndy KC22 Mechanical Grounding Connector

Mechanical Grounding Connectors are One of the Most Widely Used, Highly Respected Lines in Industry there is No Grounding Application Problem that is Diversified Line Cannot Help Solve; Designed for Easy Installation and for Outstanding Durability; One of the Finest High Copper Alloys are Used in their Manufacture, Ensuring Top Performance Under the Most Extreme Environmental Conditions; Used in Direct Burial Applications in Earth or Concrete

Specifications:

Conductor Size: 10 to 2 AWG (Solid), 10 to 3 AWG (Stranded)
Number of Conductors: 1
Stud Diameter: 3/8 Inch-16 TPI
Stud Length: 5/8 Inch
Body Hex Size: 5/8 Inch
Nut Hex Size: 3/4 Inch
Material: High Copper Alloy
Approval: UL, CSA
Used On: Cable to Flat Surface
