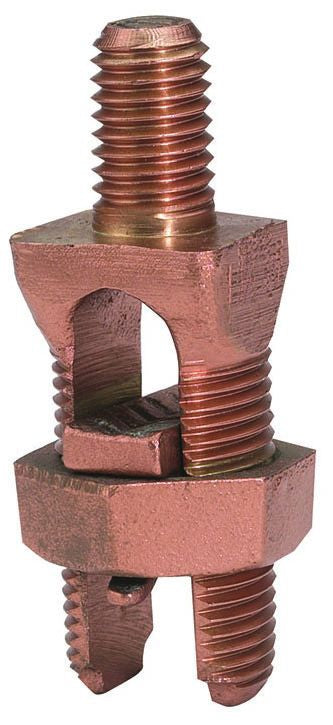

Burndy KC28B1 Mechanical Grounding Connector
Regular price
$167.73
Couldn't load pickup availability
Servit Post Used to Ground One or Two Cables to Steel Structures, Fence Posts, Transformers, also Used to Tap One or Two Cables from Bus Bar, 1-Wrench Installation
Specifications:
Conductor Size: 1 to 4/0 AWG Solid/Stranded
Number of Conductors: 1
Stud Diameter: 5/8 Inch-11 TPI
Stud Length: 1.25 Inch
Body Hex Size: 1-3/16 Inch
Nut Hex Size: 1-1/2 Inch
Material: Leaded Bronze Alloy
Approval: UL, CSA
Used On: Cable to Flat Surface, Cable to Steel Structure/Fence Post/Transformer
