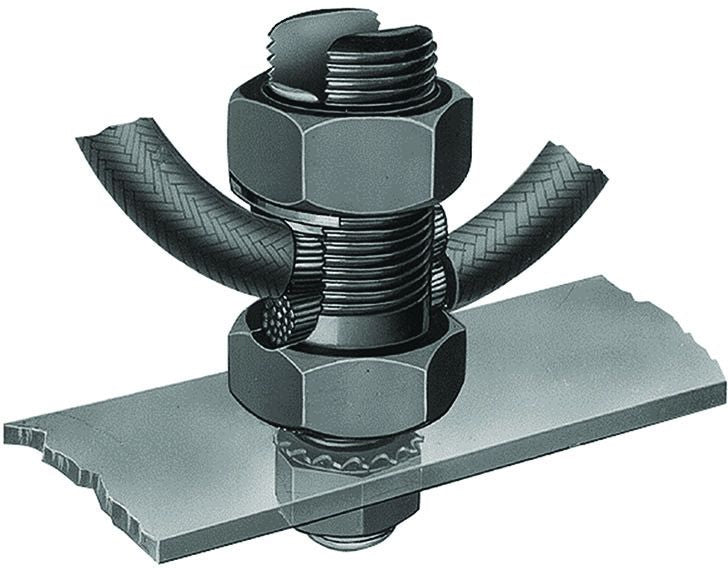

Burndy K2C25 Mechanical Grounding Connector

Mechanical Grounding Connectors One of the Most Widely Used, Highly Respected Lines in the Industry there is Virtually No Grounding Application Problem that this Diversified Line Cannot Help Solve; All Burndy Mechanical Grounding Connectors have Been Designed for Easy Installation and for Outstanding Durability; Only the Finest High Copper Alloys are Used in their Manufacture, Ensuring Top Performance Under the Most Extreme Environmental Conditions; UL 467 Listed for Direct Burial Applications in Earth or Concrete

Specifications:

Conductor Size: 2 to 2/0 AWG Solid, 2 to 1/0 AWG Stranded
Number of Conductors: 2
Stud Diameter: 1/2 Inch-13 TPI
Stud Length: 9/16 Inch
Body Hex Size: 3/4 Inch
Nut Hex Size: 15/16 Inch
Material: Leaded Bronze Alloy
Approval: UL, CSA
Used On: Cable to Flat/Steel Structure/Fence Post/Transformer
