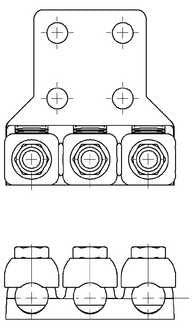

Burndy Q2A34-4N Mechanical Cable Lug
Regular price
$415.09
Couldn't load pickup availability
Compact, High Copper Alloy Terminal for Joining Two Cables to Equipment Pads or Bars; Each Element Accommodates a Wide Range of Cable; 1-Wrench Installation; RoHS Compliant
Specifications:
Type: Set Screw
Number of Conductors: 2
Minimum Conductor Size: 400 KCMIL Stranded
Maximum Conductor Size: 500 KCMIL Stranded
Conductor Material: Copper
Pad Type: Equipment
Screw Type: Stud Hex Nut
Material: Copper Alloy
Number of Pad Holes: 4 NEMA
Pad Size: 3.13 Inch L x 3 Inch W x 0.38 Inch Thk
Stud Size: 1/2 Inch
Overall Length: 4.69 Inch
Approval: UL 468-A, UL 468-B
