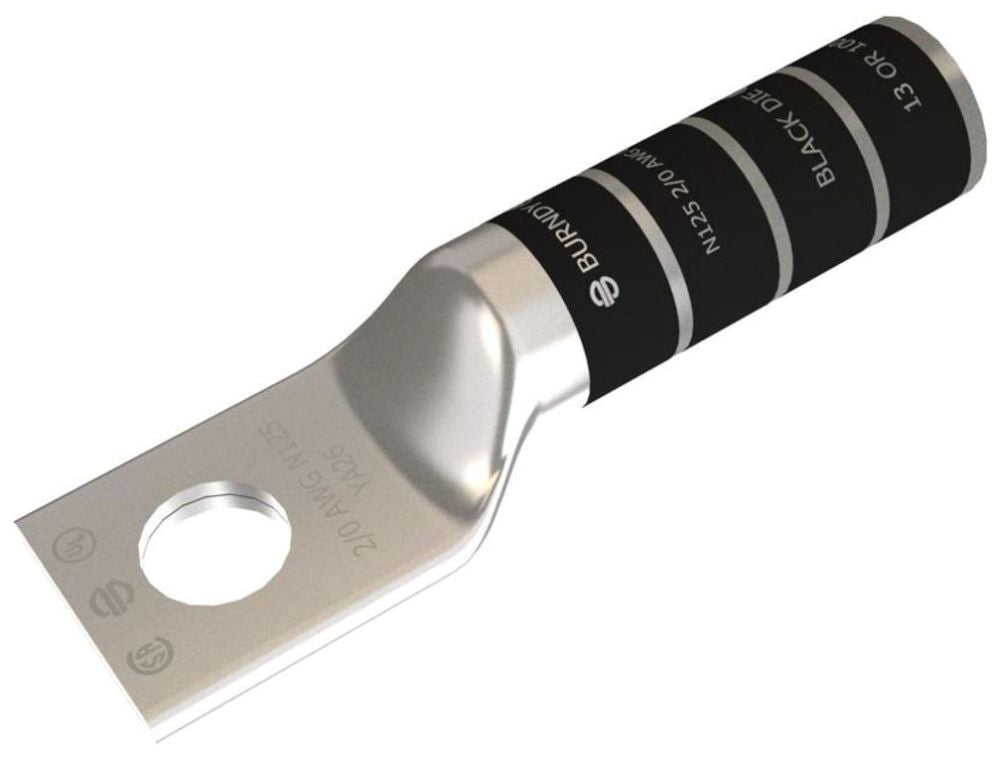

Burndy YA26 Compression Cable Lug

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 2/0 AWG Stranded (Code), 125 (Navy)
Barrel Type: Long, Straight, Non-Insulated
Barrel Length: 1.5 Inch
Pad Size: 0.83 Inch Width x 0.12 Inch Thickness
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Black
Die Index: 13
Material: Electro Tin Plated Copper
Overall Length: 2.77 Inch
Approval: UL, CSA
