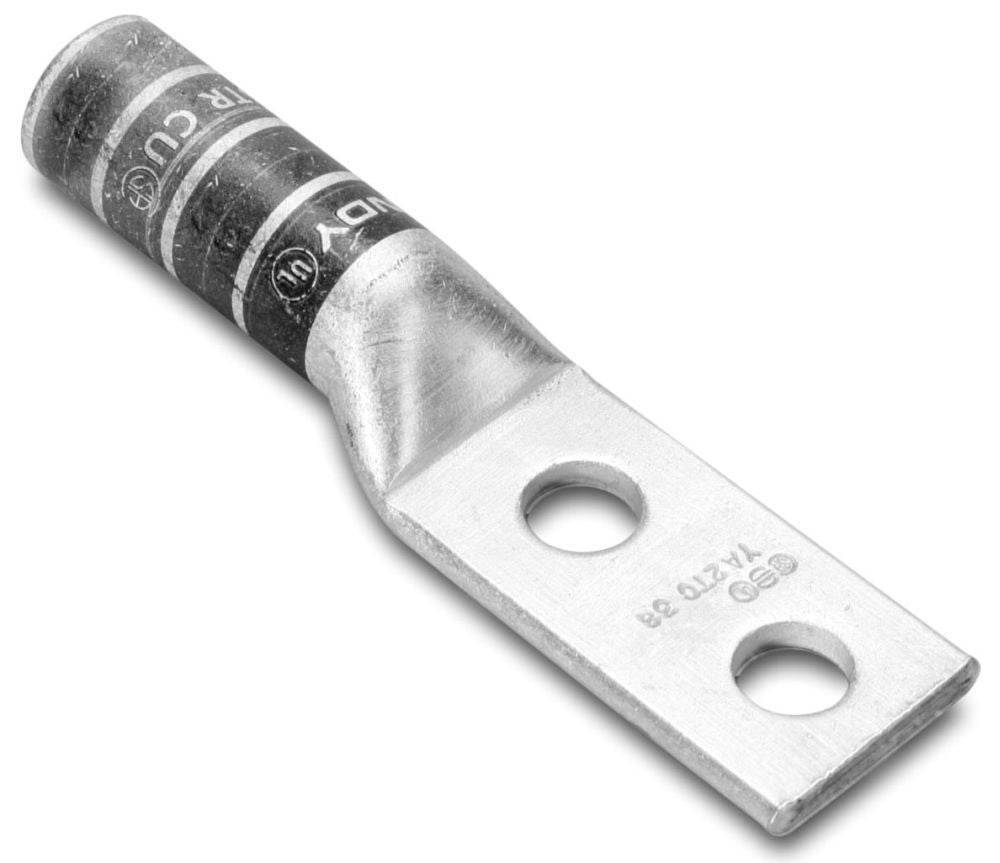

Burndy YA2C2TC38 Compression Cable Lug

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Wire Strands During Insertion; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 2 AWG Stranded (Code), 60 (Navy)
Barrel Type: Long, Straight
Barrel Length: 1.25 Inch
Pad Size: 0.6 Inch Width x 0.11 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Brown
Die Index: 10
Material: Electro Tin Plated Copper
Overall Length: 3.42 Inch
Approval: UL, CSA
