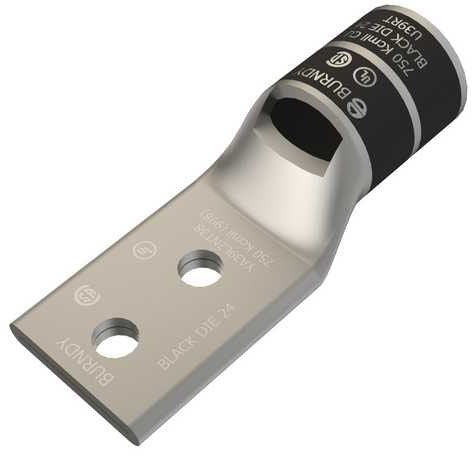

Burndy YA39L2NT38 Compression Terminal

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 750 KCMIL Stranded (Code)
Barrel Type: Skived, Standard, Straight
Barrel Length: 1.42 Inch
Pad Size: 1.63 Inch W x 0.27 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Black
Die Index: 24
Material: Electro-Tin Plated Copper
Overall Length: 4.34 Inch
Approval: UL, CSA
