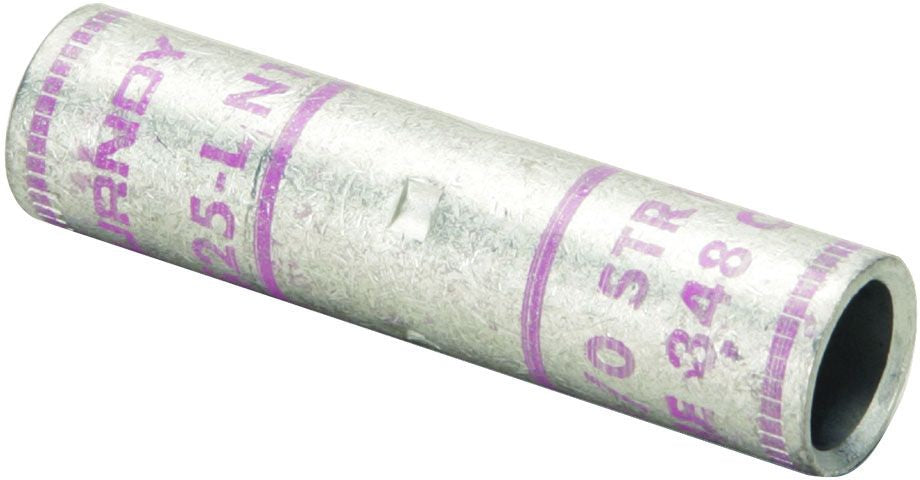

Copper Seamless Barrel has Centre Stop Indentations Used to Indicate When Wire is Fully Inserted into Each Side of the Barrel; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands During Insertion; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirements; Connectors Clearly Marked with Color Coding; RoHS Compliant

Specifications:

Type: Butt
Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Size: 600 KCMIL (Code)
Conductor Material: Copper
Color Code: Green
Barrel Type: Standard with Chamfered End
Length: 3.22 Inch
Body Material: Electro Tin Plated Copper
Approval: UL 468A/468B, CSA
