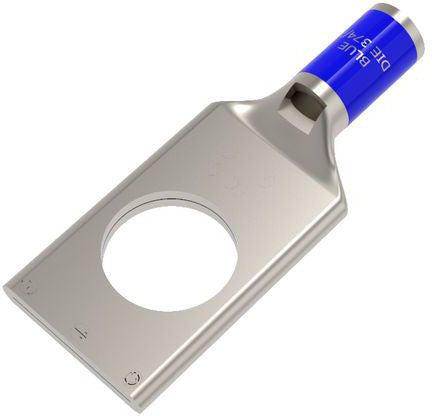

Burndy YA6CL3BOX Compression Terminal

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 6 AWG Solid/Stranded (Code)
Barrel Type: Standard, Straight, Non-Insulated
Barrel Length: 0.54 Inch
Pad Size: 0.52 Inch Width x 0.07 Inch Thickness
Number of Pad Holes: 1
Stud Size: 5/16 Inch
Color: Blue
Die Index: 7/374
Material: Electro Tin Plated Copper
Overall Length: 1.52 Inch
Approval: UL, CSA
