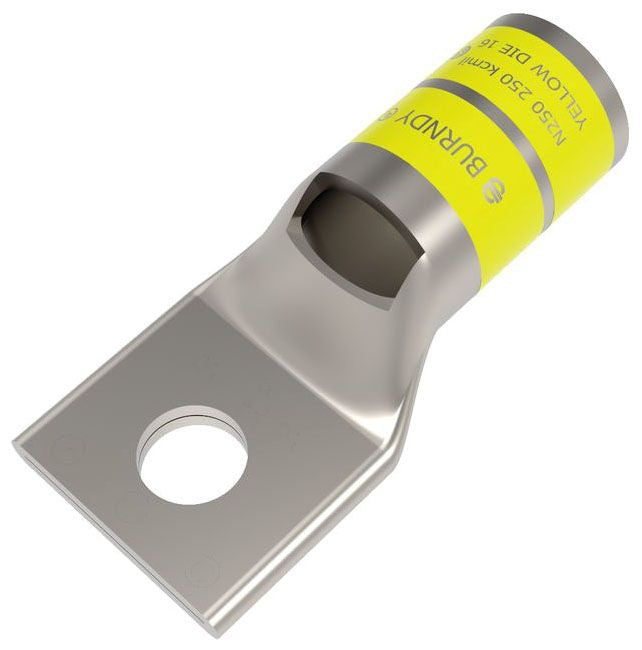

Burndy YA29LBOX Compression Cable Lug

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 250 KCMIL Stranded (Code), 250 (Navy)
Barrel Type: Standard, Straight, Non-Insulated
Barrel Length: 1.06 Inch
Pad Size: 1.11 Inch Width x 0.16 Inch Thickness
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Yellow
Die Index: 16
Material: Electro Tin Plated Copper
Overall Length: 2.67 Inch
Approval: UL, CSA
