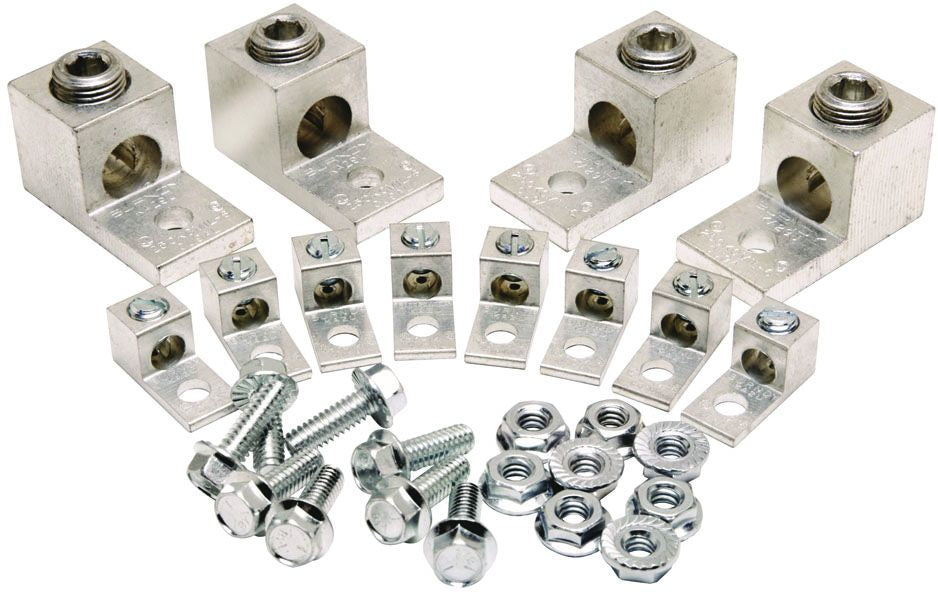

Burndy KAUKIT1 Transformer Lug Kit
Regular price
$58.52
Couldn't load pickup availability
Ensure the Transformer Feeders and Taps are Terminated Properly; Plated Steel Cap Screws and Hex Nuts with Captive Conical Washers or Individual Belleville Washers; RoHS Compliant with Exemption
Specifications:
Transformer Type: 15 to 37.5 KVA 1-Phase/15 to 45 KVA 3-Phase
Bolt Size: (8) 1/4 Inch-20 TPI x 3/4 Inch L Hex Head
Nut Size: (8) 1/4 Inch-20 TPI Hex
Wire Type: Aluminum/Copper
Terminal Size: 12 Terminal (14 AWG to 250 KCMIL)
Washer Type: Captive Nut
