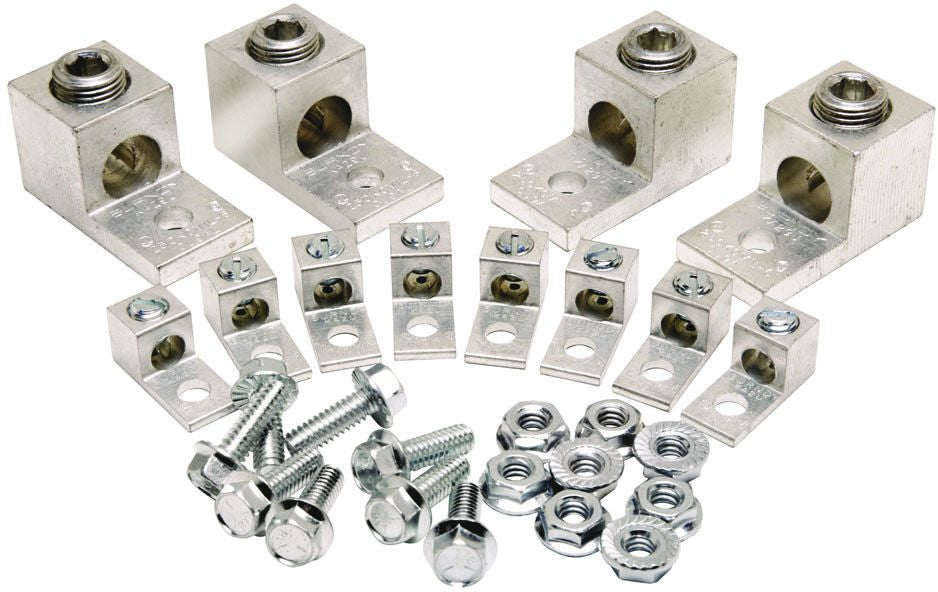

Burndy KAUKIT2 Transformer Lug Kit
Regular price
$126.44
Couldn't load pickup availability
Ensure the Transformer Feeders and Taps are Terminated Properly; Plated Steel Cap Screws and Hex Nuts with Captive Conical Washers or Individual Belleville Washers; RoHS Compliant with Exemption
Specifications:
Transformer Type: 50 to 75 KVA 1-Phase/75 to 112.5 KVA 3-Phase
Bolt Size: (8) 1/4 Inch-20 TPI x 3/4 Inch L Hex Head, (8) 1/4 Inch-20 TPI x 2 Inch L Hex Head
Nut Size: (16) 1/4 Inch-20 TPI Hex
Wire Type: Aluminum/Copper
Terminal Size: 12 Terminal (6 AWG to 250 KCMIL)
Washer Type: Captive Nut
