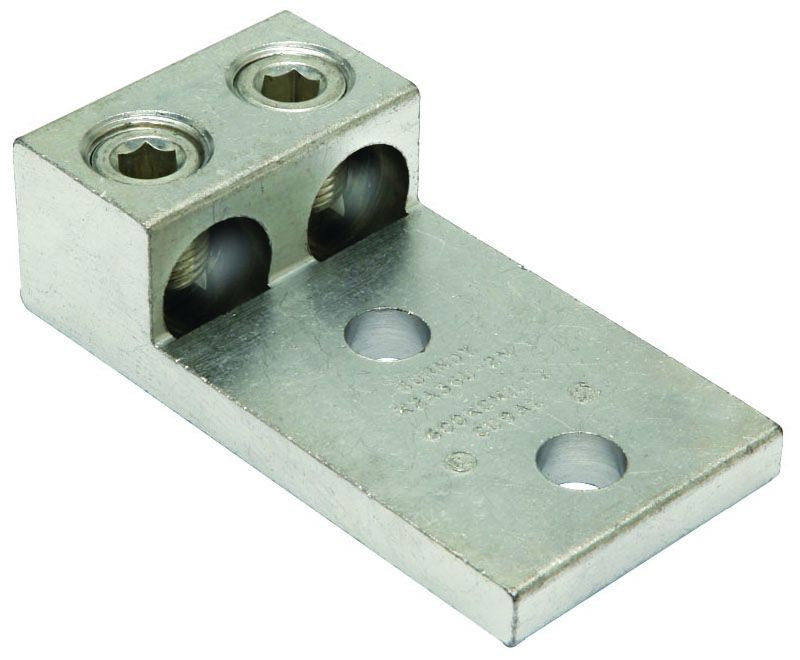

Burndy K2A40U2N Mechanical Cable Terminal Lug
Regular price
$100.72
Couldn't load pickup availability
These Dual-Rated Two-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; For Aluminum and Copper Conductors
Specifications:
Type: Universal, Dual Rated
Number of Conductors: 2
Minimum Conductor Size: 300 KCMIL Stranded
Maximum Conductor Size: 800 KCMIL Stranded
Conductor Material: Copper/Aluminum
Material: Electro Tin Plated High Strength Aluminum Alloy
Number of Pad Holes: 2 NEMA

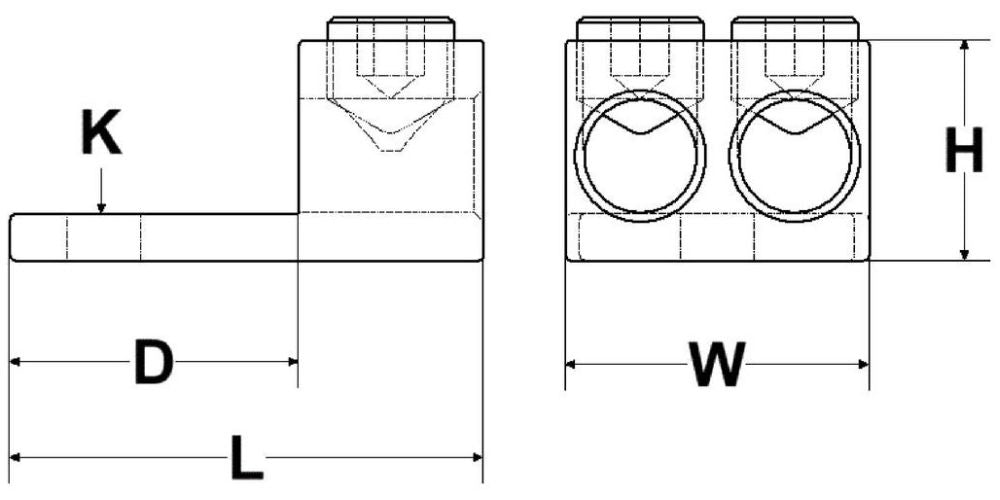

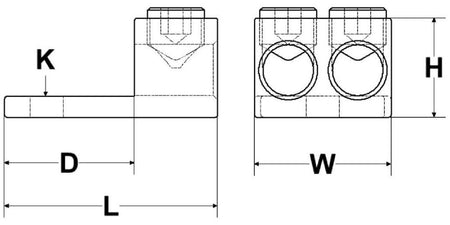

Pad Size: 3.03 Inch Length x 3.19 Inch Width x 0.5 Inch Thickness
Stud Size: 1/2 Inch
Overall Length: 4.75 Inch
Approval: UL 468A/B, CSA
