Burndy YRA28U Compression Cable Lug
Regular price
$21.23
Couldn't load pickup availability
Aluminum Hylug for Joining Aluminum and Copper Cable to Transformer and Equipment Pads; Hylug is Pre-Filled with Penetrox Joint Compound, Strip-Sealed and Capped to Limit Oxide Growth and to Increase the Life of the Connection; Installed with Standard Tooling, Five Die Sets Install Fourteen Terminal Sizes; RoHS Compliant
Specifications:
Conductor Material: Aluminum, Copper
Aluminum/Copper Conductor Size: 4/0 AWG Stranded (Aluminum Concentric/Compact/Copper)
Material: Aluminum
Number of Pad Holes: 1

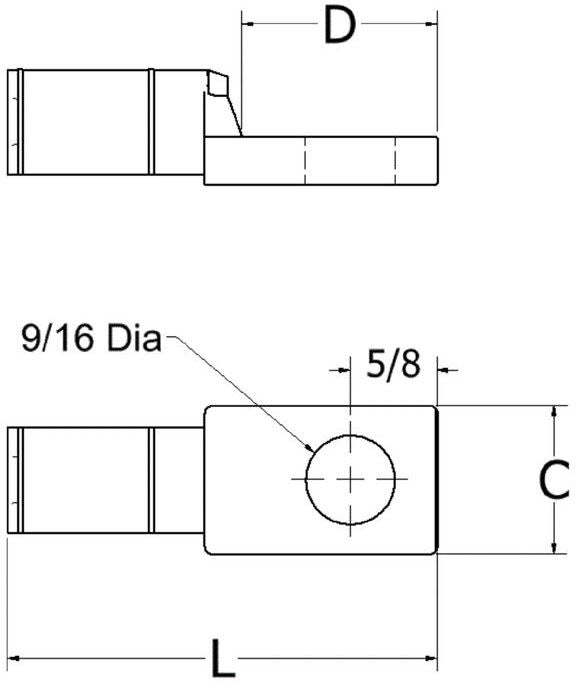

Pad Size: 1-1/4 Inch Length x 15/16 Inch Width
Die Index: 249, K-840
Overall Length: 3-1/4 Inch
Stud Size: 9/16 Inch
