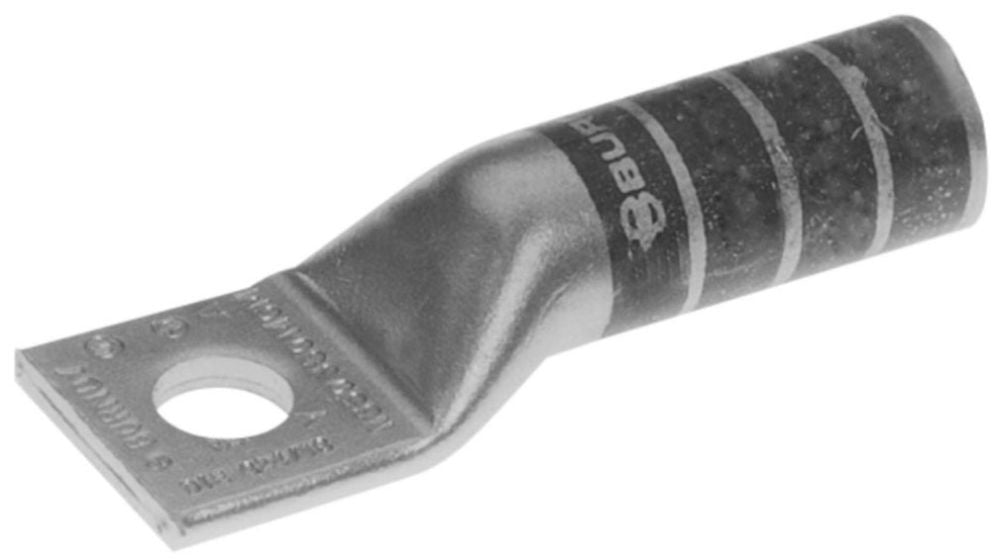

Burndy YA28N Compression Cable Lug

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 600 to 35000 Volt
Conductor Material: Copper
Conductor Size: 200 (Navy), 4/0 AWG
Barrel Type: Long
Barrel Length: 1.62 Inch
Pad Size: 1.02 Inch
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Purple
Die Index: 15
Material: Copper
Overall Length: 3.41 Inch
Approval: UL 486A-486B, CSA
