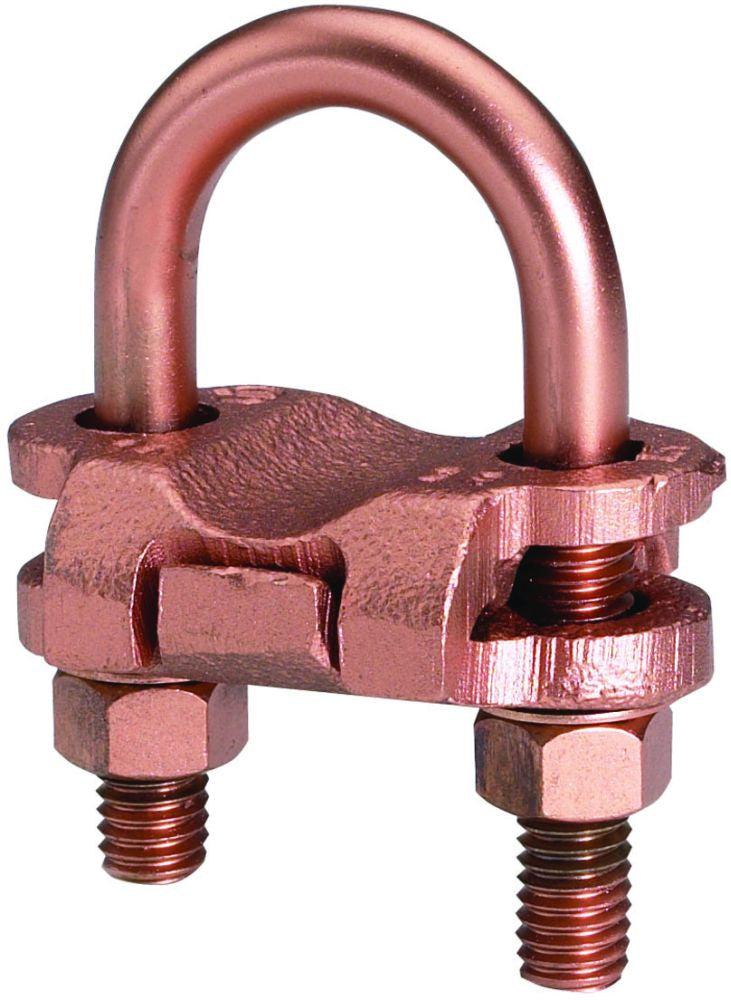

Burndy GP1429 Mechanical Grounding Connector

High Copper Alloy Ground Connector for Joining a Range of Parallel Cables Perpendicular to Rod, Pipe or Column; Also Used with One Groove for Run the Other for Tap to Equipment; High Copper Alloy Cast Body and Durium U-Bolts, Nuts, Lock Washer Make the GP Suitable for Direct Burial in the Ground or Concrete; 1-Wrench Installation; Acceptable for Direct Burial in Earth or Concrete; RoHS Compliant

Specifications:

Conductor Size: 2/0 to 4/0 AWG Solid (Copper), 1/0 AWG to 250 KCMIL Stranded (Copper)
IPS Size: 1/2 to 3/4 Inch
Rod Size: 7/8 to 1 Inch

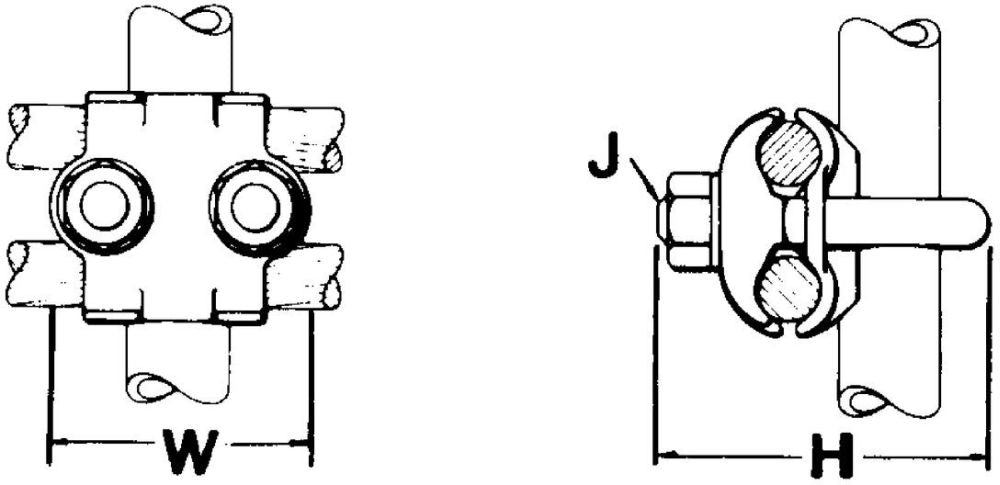

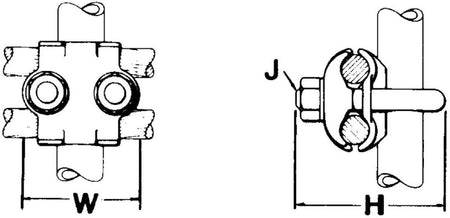

Size: 2-3/8 Inch W x 3 Inch H
Installation: U-Bolt to Pipe/Rod
Material: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher
Approval: UL 467, CSA
Used On: (2) Parallel Copper Cable Perpendicular to Column/Pipe/Rod, Direct Burial
