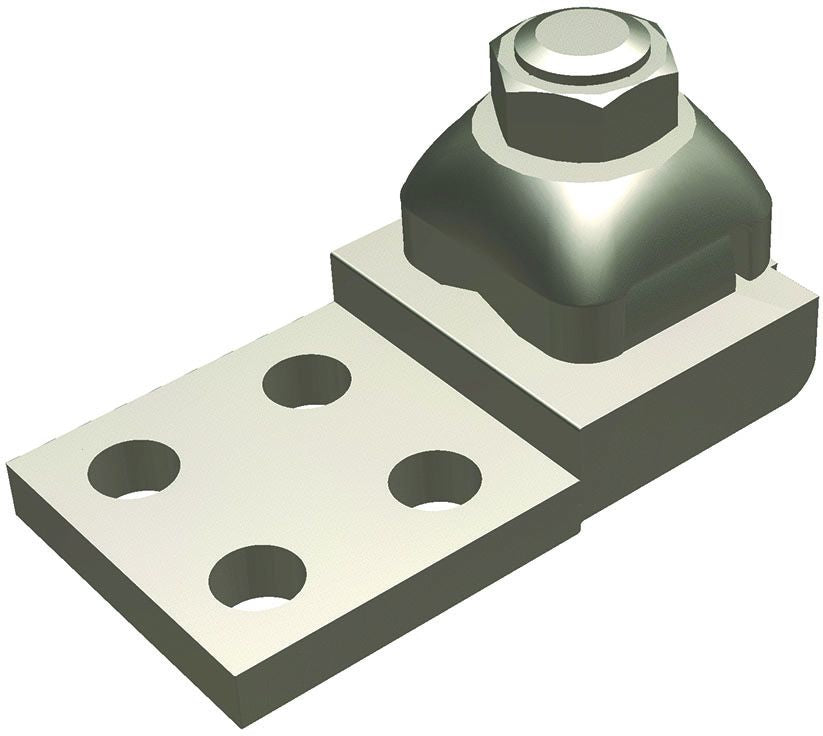

Burndy QA34-4B Mechanical Cable Lug

Type QA Heavy Duty, Compact, High Copper Alloy Terminal for Joining a Wide Range of Cable to Equipment Pads or Bar; Fast 1-Wrench Installation; Type QQA Heavy Duty, High Copper Alloy Terminal for Joining Cable to Equipment Pads or Bar; Twin Clamping Elements Secure Joint Vibration and Flexing; RoHS Compliant

Specifications:

Type: Set Screw
Number of Conductors: 1
Minimum Conductor Size: 400 KCMIL Stranded, 400 Navy
Maximum Conductor Size: 500 KCMIL Stranded, 500 Navy
Conductor Material: Copper
Pad Type: Equipment
Screw Type: Stud Hex Nut
Material: Copper Alloy
Number of Pad Holes: 4
Pad Size: 1.94 Inch L x 1.88 Inch W x 0.31 Inch Thk
Stud Size: 3/8 Inch
Overall Length: 3.5 Inch
Approval: UL 468-A, UL 468-B
