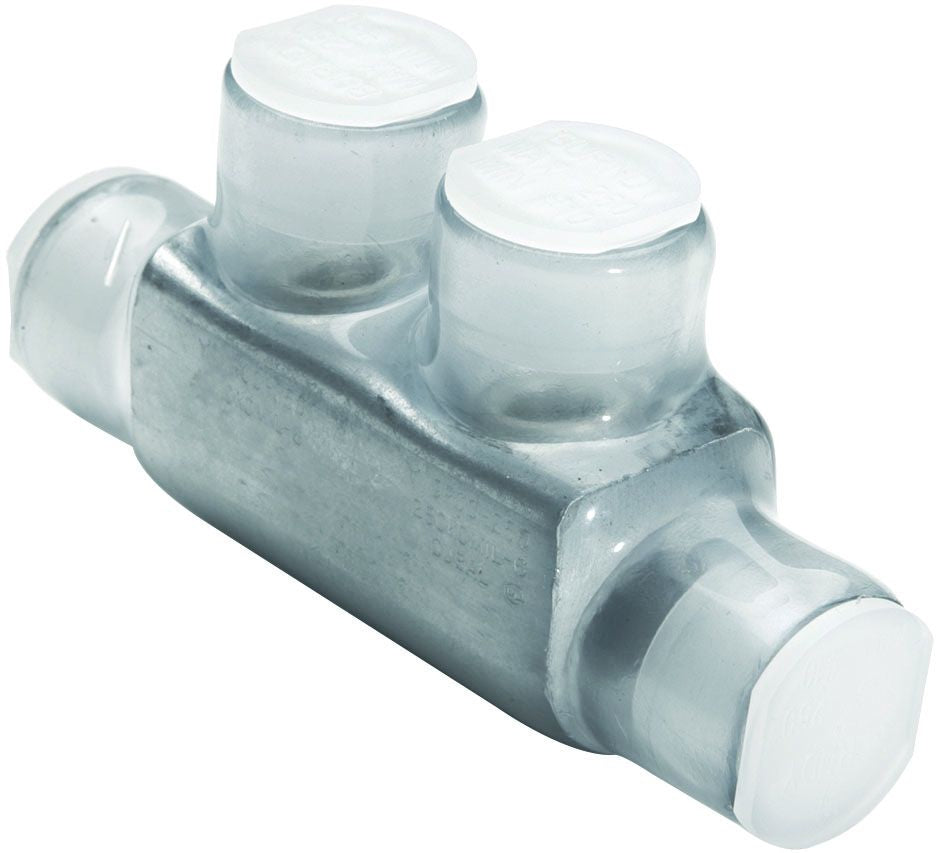

Burndy BISR350 Mechanical Cable Splice

Saves Time, Lowers Installation Costs, Eliminates Taping; Clear Plastisol Allows Visual Confirmation that Conductor is Properly Inserted; Oxide Inhibitor Pre-Installed Inhibits Moisture and Contaminants from Entering the Contact Area; Range-Taking Reduces Number of Connectors Carried in Inventory; RoHS Compliant

Specifications:

Type: In-Line
Voltage Rating: 600 Volt
Minimum Conductor Size: 8 AWG (Aluminum), 10 AWG Stranded (Copper)
Maximum Conductor Size: 350 KCMIL (Aluminum), 350 KCMIL Stranded (Copper)
Conductor Material: Copper/Aluminum
Number of Screws: 2
Hex Size: 5/16 Inch

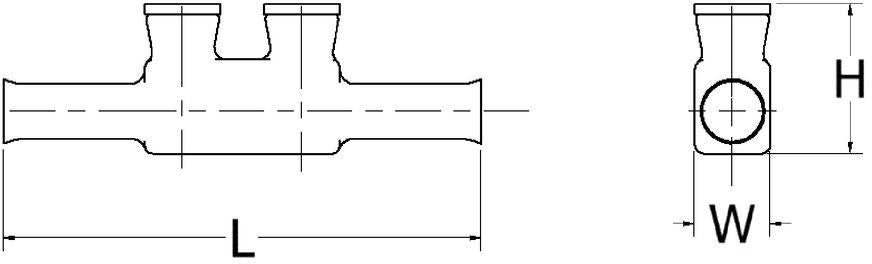

Size: 4.63 Inch Length x 1.34 Inch Width x 2.35 Inch Height
Body Material: 6061-T6 Aluminum
Insulation Type: Clear Plastisol
Approval: UL, CSA
