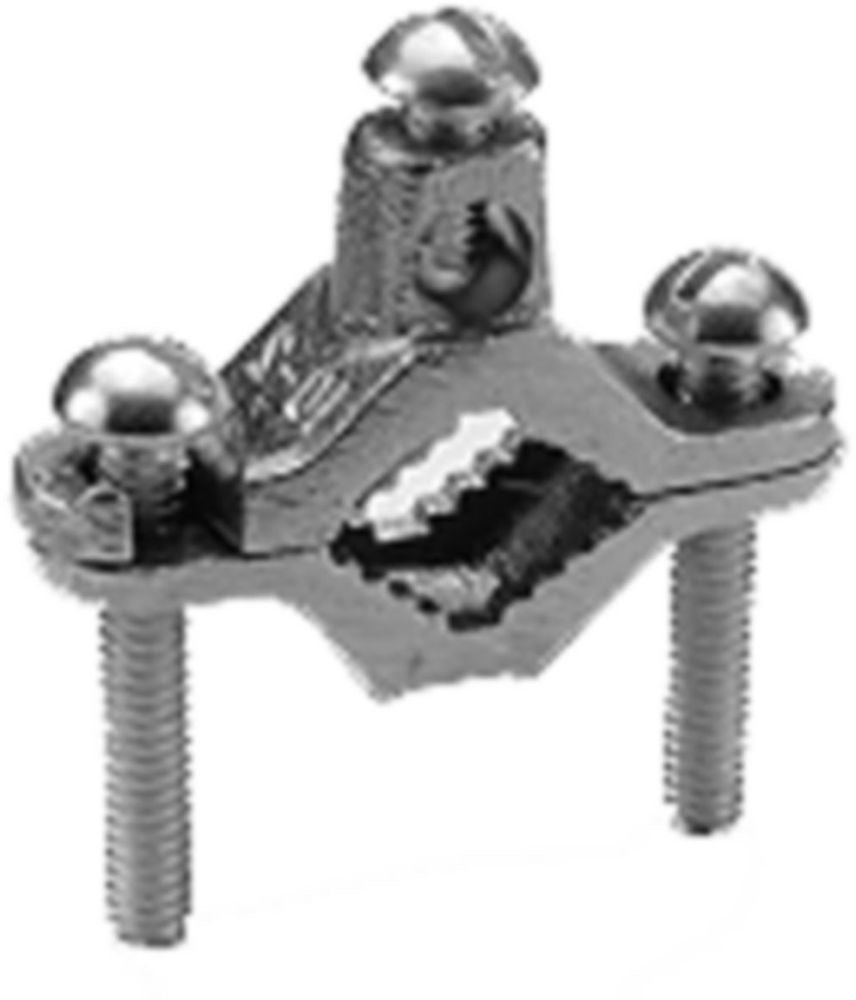

Burndy C-22 Mechanical Grounding Clamp Connector
Alternate Image 1
Burndy C-22 Mechanical Grounding Clamp Connector
Alternate Image 1
Burndy

Burndy C-22 Mechanical Grounding Clamp Connector

Out of stock
SKU: 232314
$15.63

Visit Our YouTube Channel

For Connecting Grounding Conductor to Water Pipe or Copper Tube, Supplied with Zinc Plated Steel Hardware; RoHS Compliant

Specifications:

Conductor Size: 10 to 2 AWG Solid/Stranded (Copper)
IPS Size: 1-1/4 to 2 Inch

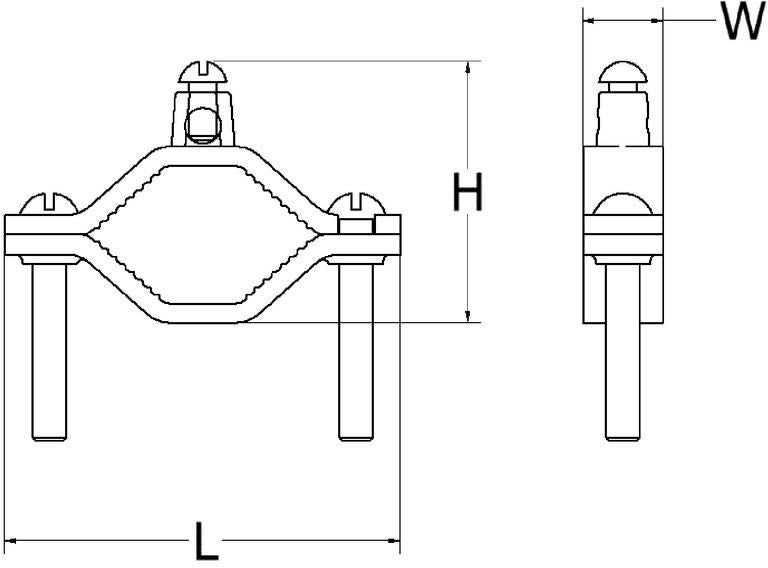

Size: 3.63 Inch Length x 0.75 Inch Width x 2.38 Inch Height
Installation: (2) Screw Connector to Pipe
Material: Solid Cast Bronze Alloy (Body), Zinc Plated Steel (Hardware)
Approval: UL 467, CSA
Used On: Grounding Conductor to Water Pipe/Copper Tube
