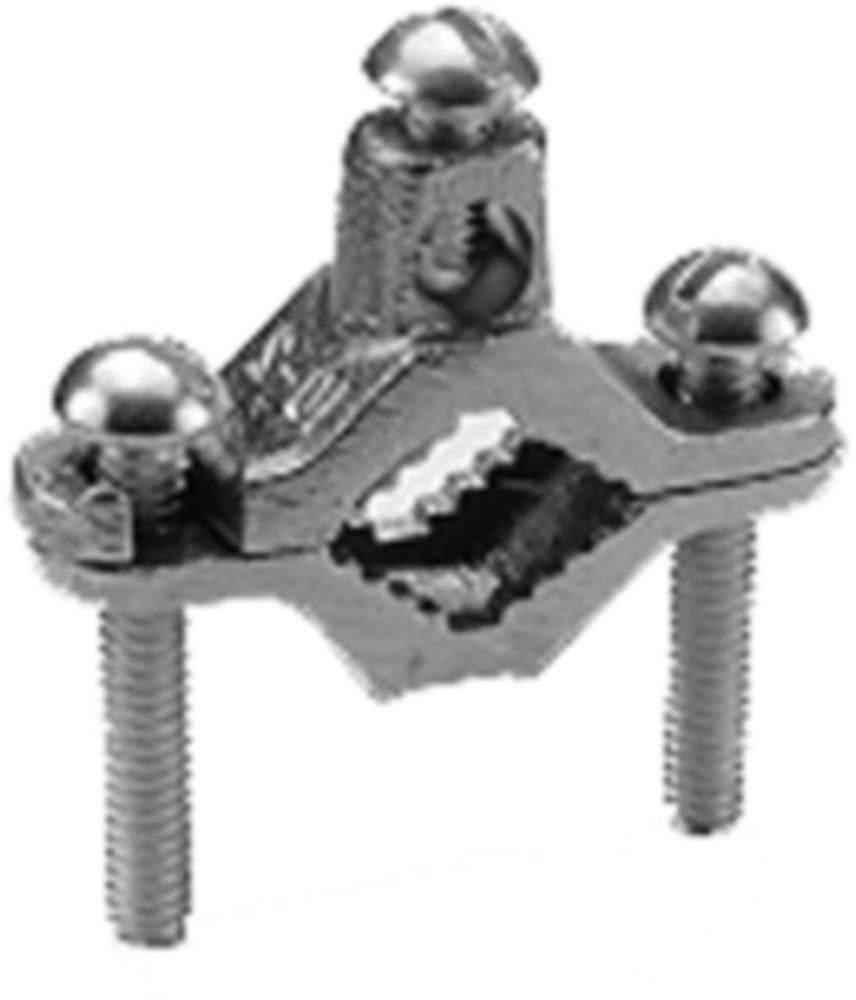

Burndy C-11D Mechanical Grounding Clamp Connector
Alternate Image 1
Burndy C-11D Mechanical Grounding Clamp Connector
Alternate Image 1
Burndy

Burndy C-11D Mechanical Grounding Clamp Connector

Out of stock
SKU: 232315
$8.18

Visit Our YouTube Channel

For Connecting Grounding Conductor to Water Pipe or Copper Tube, D Indicates UL467 Listed for Direct Burial in Earth and Concrete and are Supplied with Silicon Bronze Hardware; RoHS Compliant

Specifications:

Conductor Size: 10 to 2 AWG Solid/Stranded (Copper)
IPS Size: 1/2 to 1 Inch

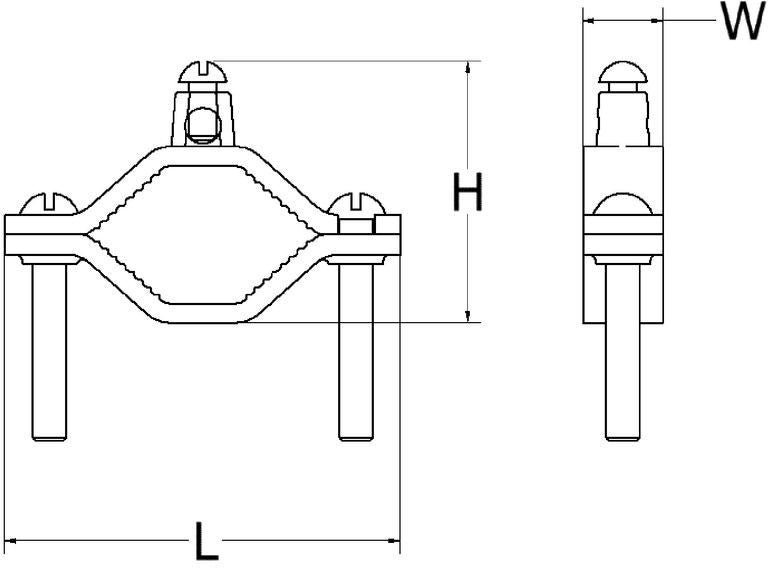

Size: 2.25 Inch Length x 0.63 Inch Width x 1.81 Inch Height
Installation: (2) Screw Connector to Pipe
Material: Solid Cast Bronze Alloy (Body), Durium Silicon Bronze (Hardware)
Approval: UL 467, CSA
Used On: Grounding Conductor to Water Pipe/Copper Tube, Direct Burial
