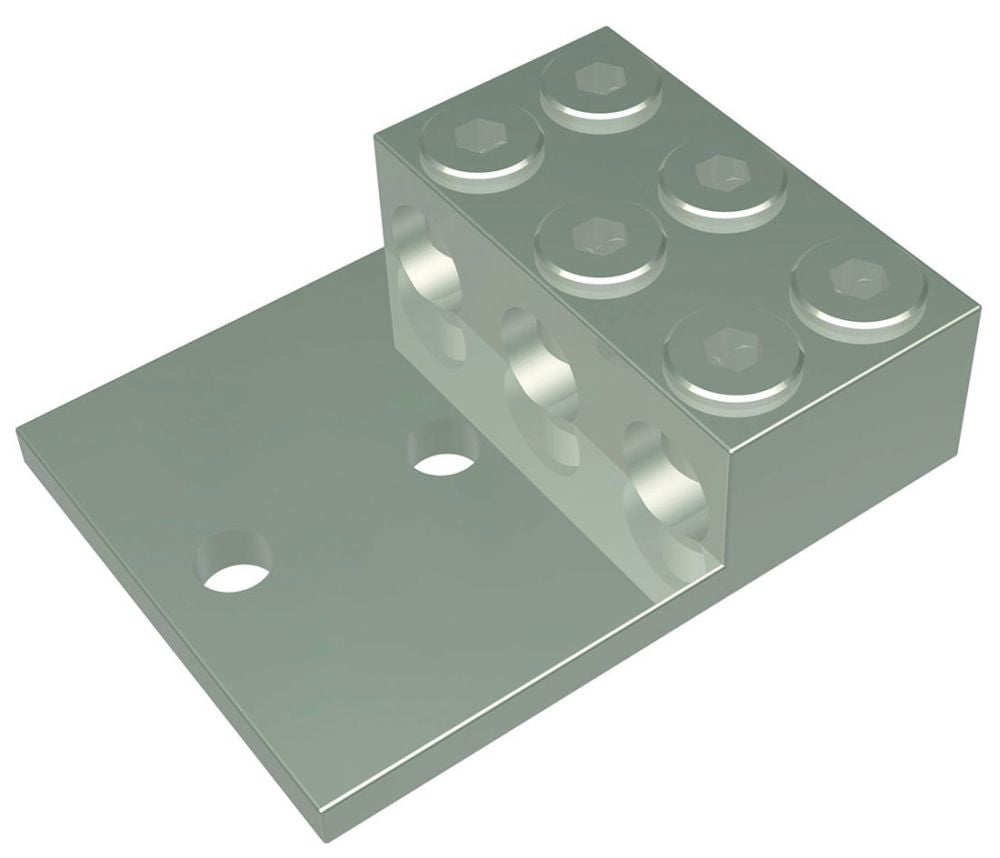

Burndy KK3A40U2N Mechanical Cable Terminal Lug
Regular price
$267.66
Couldn't load pickup availability
Dual-Rated Three-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; RoHS Compliant
Specifications:
Number of Conductors: 3
Minimum Conductor Size: 300 KCMIL Stranded
Maximum Conductor Size: 800 KCMIL Stranded
Conductor Material: Aluminum/Copper
Material: Electro-Tin Plated Aluminum Alloy
Number of Pad Holes: 2 NEMA

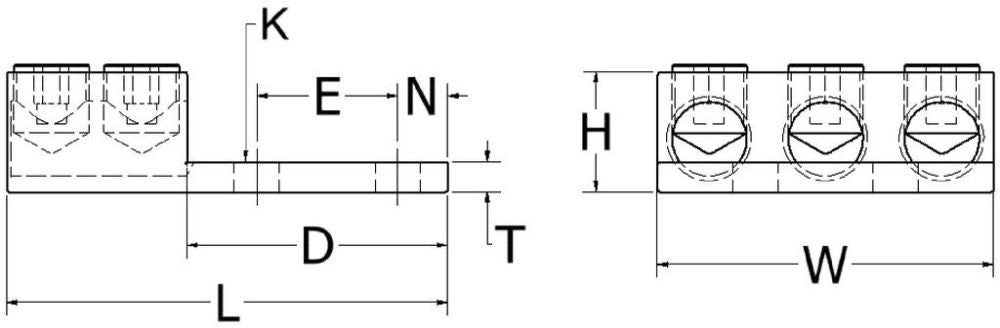

Pad Size: 3.34 Inch L x 4.28 Inch W x 0.56 Inch Thk
Stud Size: 1/2 Inch
Overall Length: 6.19 Inch
Approval: UL 468-A, UL 468-B, CSA
