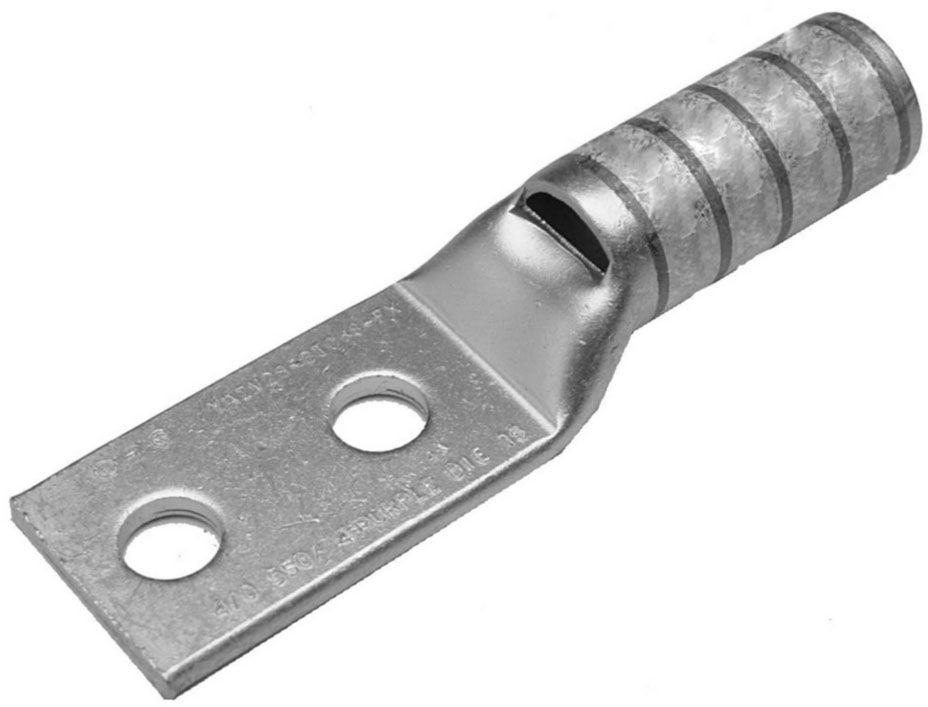

Burndy YAZ342TC38FX Compression Cable Lug

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands During Insertion; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 925/24, 373.3 KCMIL (Flex), 350 KCMIL (Nom)
Barrel Type: Long, Skived, Straight
Barrel Length: 2.25 Inch
Pad Size: 1.55 Inch W x 0.23 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Blue
Die Index: 19/470
Material: Electro-Tin Plated Copper
Overall Length: 4.85 Inch
Approval: UL, CSA
