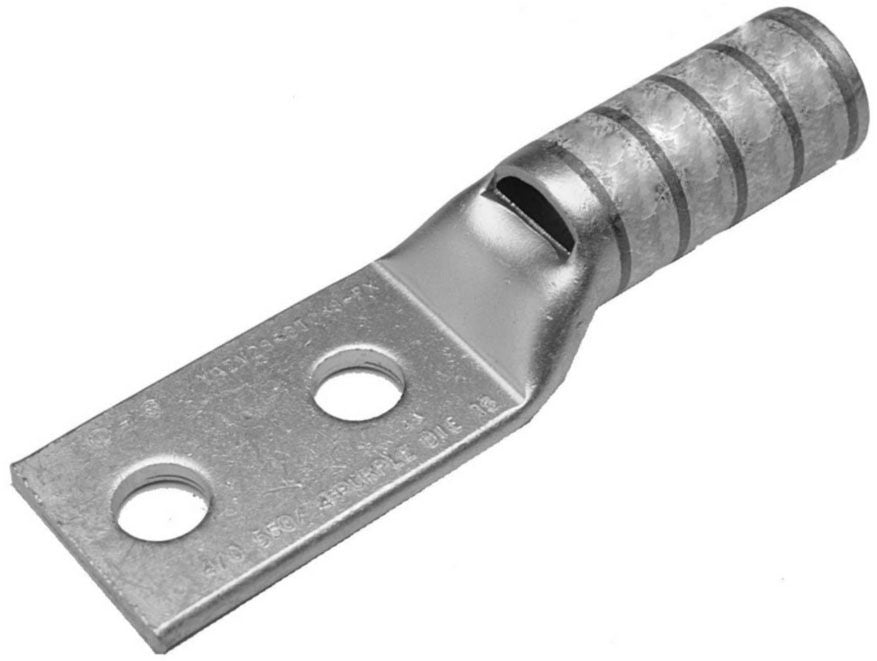

Burndy YAZV4C2NTCFX Compression Terminal
Regular price
$12.78
Couldn't load pickup availability
Specifications:
Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 4 AWG Stranded (Flex), 4 AWG (Weld)
Barrel Type: Long, Skived, Straight
Barrel Length: 1.25 Inch
Pad Size: 0.83 Inch W x 0.12 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Gray
Die Index: 8
Material: Tin Plated Copper
Overall Length: 4.62 Inch
Approval: UL, CSA
