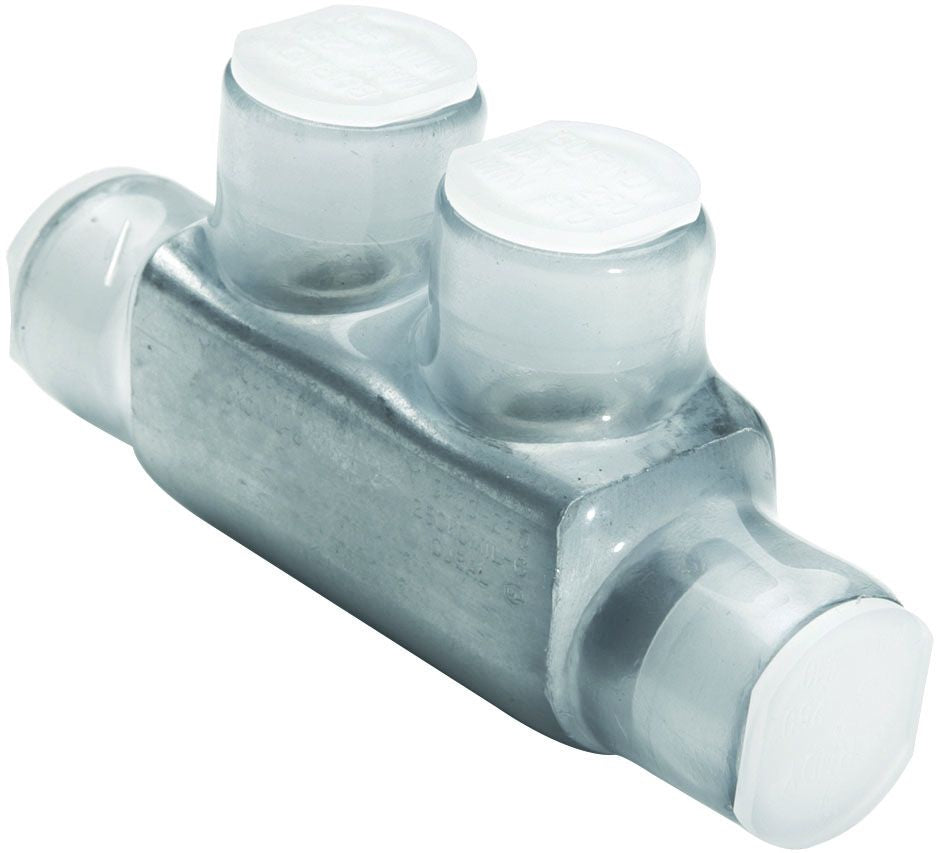

Clear Plastisol Covered AL6061-T6 Aluminum Body Saves Time, Lowers Installation Costs, Eliminates Taping; Clear Plastisol Allows Visual Confirmation that Conductor is Properly Inserted; Oxide Inhibitor Pre-Installed Inhibits Moisture and Contaminants from Entering the Contact Area; Range-Taking Reduces Number of Connectors Carried in Inventory; RoHS Compliant

Specifications:

Type: In-Line
Voltage Rating: 600 V
Minimum Conductor Size: 8 AWG (Aluminum), 14 AWG Stranded (Copper)
Maximum Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
Conductor Material: Aluminum/Copper
Number of Screws: 2
Hex Size: 5/32 Inch

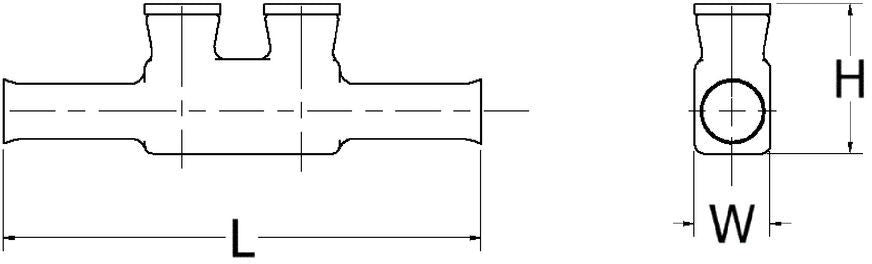

Size: 2.38 Inch L x 0.75 Inch W x 1.22 Inch H
Body Material: 6061-T6 Aluminum
Insulation Type: Clear Plastisol
Approval: UL, CSA
