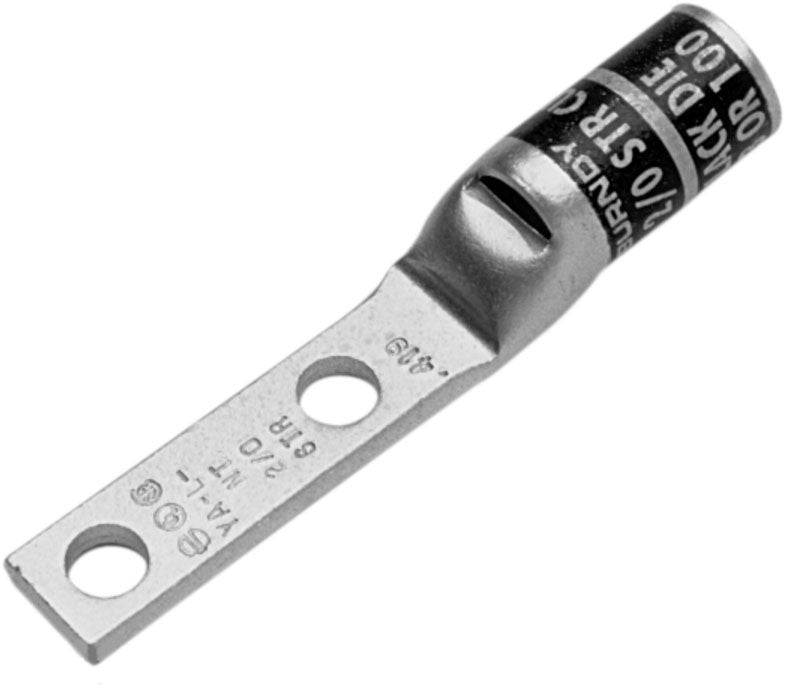

Burndy YA44L2NNTFX Compression Cable Lug

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands During Insertion; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 1925/24 Diesel Locomotive Cable, 777.7 KCMIL (Flex), 750 KCMIL Class G/H/I (Flex), 750 KCMIL Stranded (Nom)
Barrel Type: Short, Standard, Straight

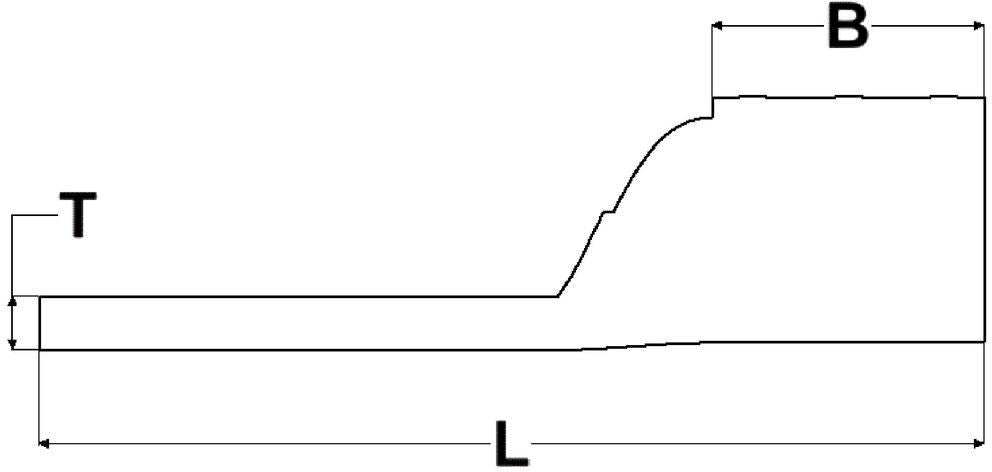

Barrel Length: 1.65 Inch
Pad Size: 1.63 Inch W x 0.33 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Yellow
Die Index: L115
Material: Electro-Tin Plated Copper
Overall Length: 5.74 Inch
Approval: UL, CSA
