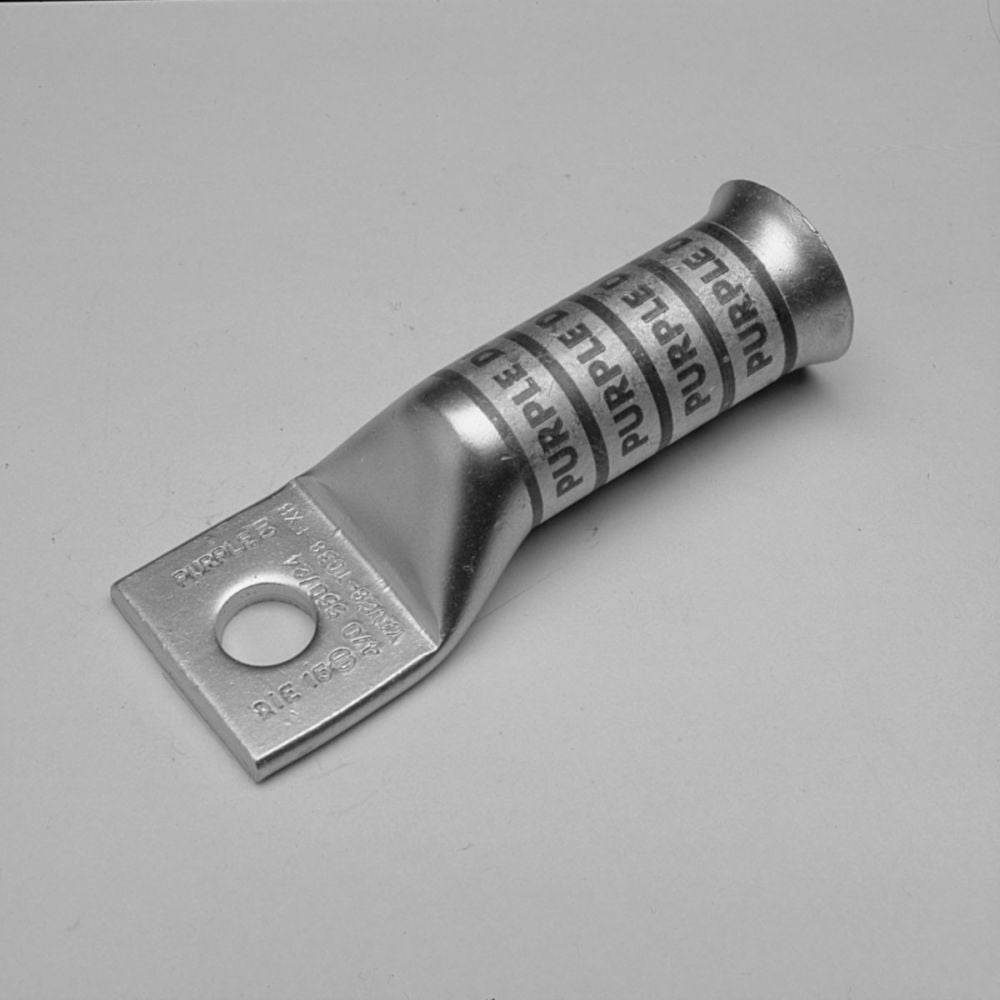

Burndy YAV28TC12FXB Compression Terminal

HYLUG Type YAV is a seamless, heavy duty uninsulated compression terminal manufactured from electrolytic copper and is for use on Type AN aircraft cable, extra flexible conductors and commercial (code) conductors. The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability.

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 4/0 AWG (550/24) Diesel Locomotive Cable, 4/0 AWG Class G, 4/0 AWG Class H/I/K/M (Flex), 4/0 AWG Stranded, 200 Navy
Barrel Type: Long, Belled, Straight
Barrel Length: 1.77 Inch
Pad Size: 1.14 Inch Width x 0.14 Inch Thickness
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Purple
Die Index: 15
Material: Electro-Tin Plated Copper
Overall Length: 3.63 Inch
Approval: UL 468A/B, CSA
