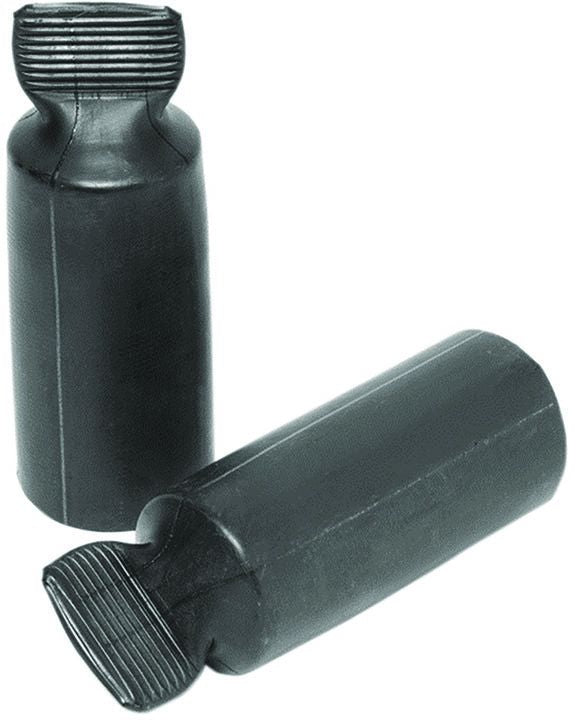

Burndy HSIC10500FR End Cap
Regular price
$128.17
Couldn't load pickup availability
Minimum 28 Oxygen Index, UL 94-VO Rated; Self-Extinguishing Flame Retardant Properties; Thermal Chromatic Lines Indicate Proper Installation; Low Shrink Temperature 150 Deg C, Only Requires Common Hot Air Gun to Apply; RoHS Compliant
Specifications:
Type: Cable End Cap
Construction: Heat Shrink
Voltage Rating: 600 V
Cable Type: Aluminum/Steel/Polyetylene/EPR/PVC
Conductor Size: 1/0 AWG to 500 KCMIL (Code), 1 AWG to 313.1 KCMIL (Flex)

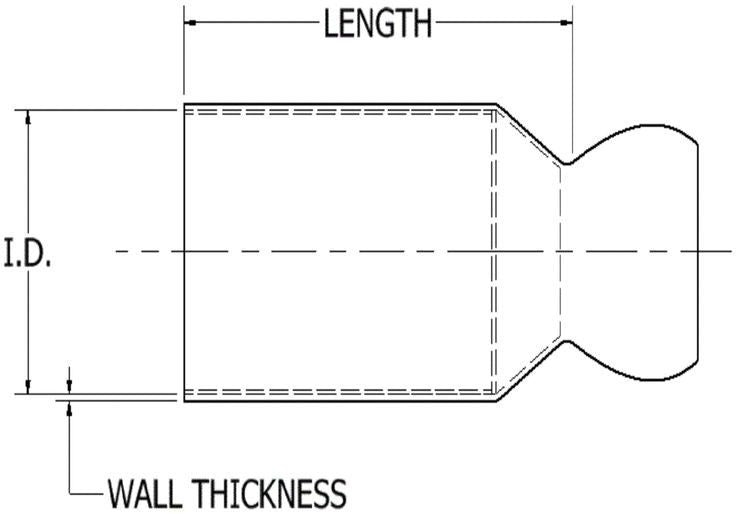

Minimum Expanded Diameter: 1.1 Inch
Maximum Recovered Diameter: 0.35 Inch
Recovered Wall Thickness: 0.12 Inch
Length: 4 Inch (Expanded), 3 Inch (Recoverable)
Shrink Ratio: 12/30/1899 3:01:00 AM
Material: Polyolefin
Approval: UL
