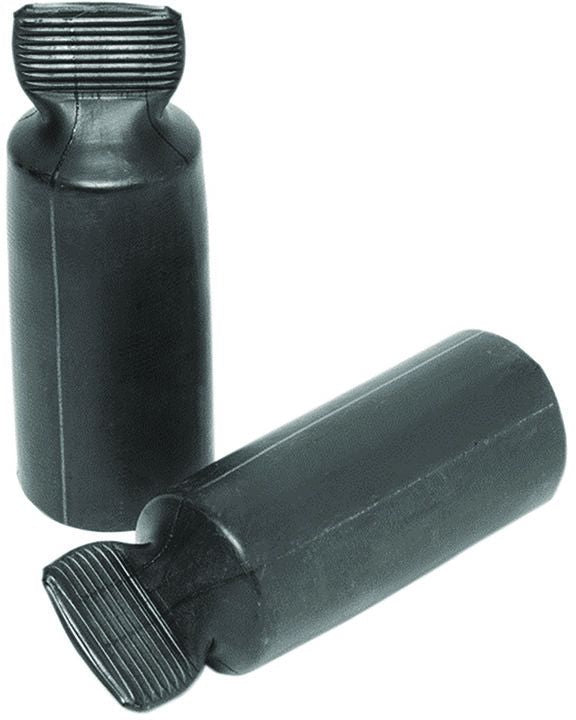

Burndy HSIC301000FR End Cap
Regular price
$164.58
Couldn't load pickup availability
Minimum 28 Oxygen Index, UL 94-VO Rated; Self-Extinguishing Flame Retardant Properties; Thermal Chromatic Lines Indicate Proper Installation; Low Shrink Temperature 150 Deg C, Only Requires Common Hot Air Gun to Apply; RoHS Compliant
Specifications:
Type: Cable End Cap
Construction: Heat Shrink
Voltage Rating: 600 V
Cable Type: Aluminum/Steel/Polyetylene/EPR/PVC
Conductor Size: 3/0 AWG to 1000 KCMIL (Code), 2/0 AWG to 646 KCMIL (Flex)

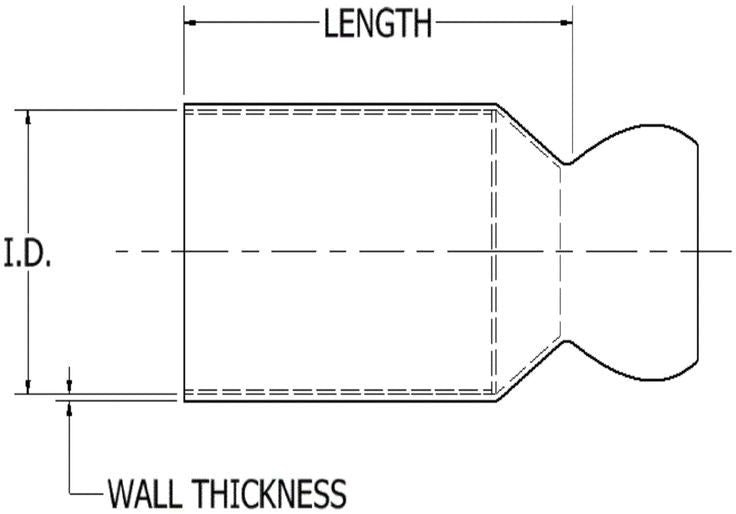

Minimum Expanded Diameter: 1.5 Inch
Maximum Recovered Diameter: 0.47 Inch
Recovered Wall Thickness: 0.16 Inch
Length: 4.5 Inch (Expanded), 3.25 Inch (Recoverable)
Shrink Ratio: 12/30/1899 3:01:00 AM
Material: Polyolefin
Approval: UL
