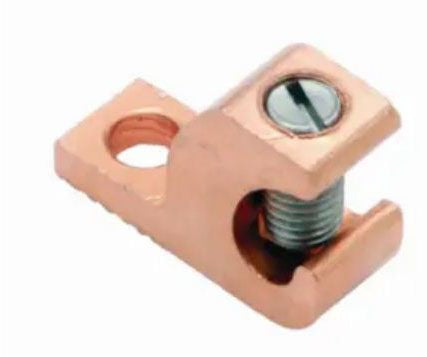

Burndy CL501 Mechanical Cable Terminal Lug

The Lay-In QIKLUG is Manufactured from High Strength Pure Electrolytic Copper to Ensure Maximum Strength and Conductivity; UL 467 Listed for Direct Burial in Earth or Concrete; The Open Faced Design Allows for Fast Lay-in of the Conductor without the Need for Cutting or Breaking; Stainless Steel Screws Used for Excellent Corrosion Resistance; RoHS Compliant

Specifications:

Type: Open Faced, Lay-In
Number of Conductors: 1
Minimum Conductor Size: 14 AWG Solid/Stranded
Maximum Conductor Size: 4 AWG Solid/Stranded
Conductor Material: Copper
Screw Type: 1/4 Inch-28 TPI Slot
Material: Copper Alloy
Number of Pad Holes: 1
Pad Size: 0.38 Inch Width x 0.2 Inch Thickness
Stud Size: #10
Overall Length: 1.13 Inch
Approval: UL 467, UL (Canada and US), CSA
