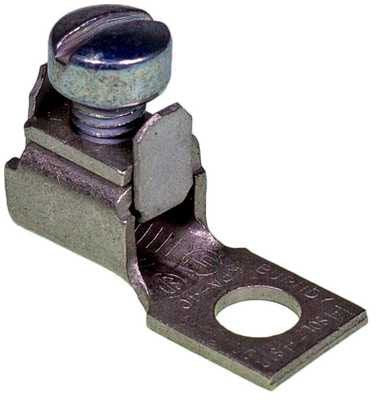

Burndy KPA4C Mechanical Cable Terminal Lug

Out of stock
SKU: 233175
Regular price $4.04
OR

High Copper Alloy Tin Plated Terminal for Joining a Wide Range of Cable to Equipment Pads or Terminal Blocks; Especially Good in Light Industrial Applications; The Tongue and Body are a 1-Piece Design; The Pressure Bar Equalizes Pressure Over the Conductor and Prevents the Screw from Cutting into the Cable; RoHS Compliant

Specifications:

Number of Conductors: 1
Minimum Conductor Size: 14 AWG Solid/Stranded
Maximum Conductor Size: 4 AWG Solid/Stranded
Conductor Material: Copper
Pad Type: Equipment
Screw Type: Slotted Head
Material: Tin Plated High Copper Alloy
Number of Pad Holes: 1
Pad Size: 0.59 Inch Length x 0.5 Inch Width x 0.06 Inch Thickness
Stud Size: 1/4 Inch
Overall Length: 1.22 Inch
Approval: UL, CSA
