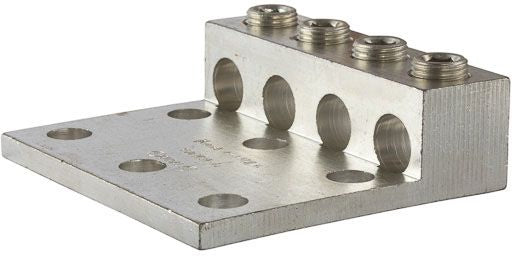

Versatile and Reusable Set-Screw Connectors Made from High Strength 6061T-6 Aluminum Alloy for Superior Electrical and Mechanical Performance; Two Set-Screws Per Wire Hole Ensure an Exceptional Connection; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors

Specifications:

Type: Set Screw
Number of Conductors: 4
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 350 KCMIL
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 3/8 Inch Hex Socket
Material: Aluminum Alloy
Number of Pad Holes: 6
Pad Size: 3.87 Inch W
Stud Size: 0.563 Inch
Overall Length: 4.31 Inch
