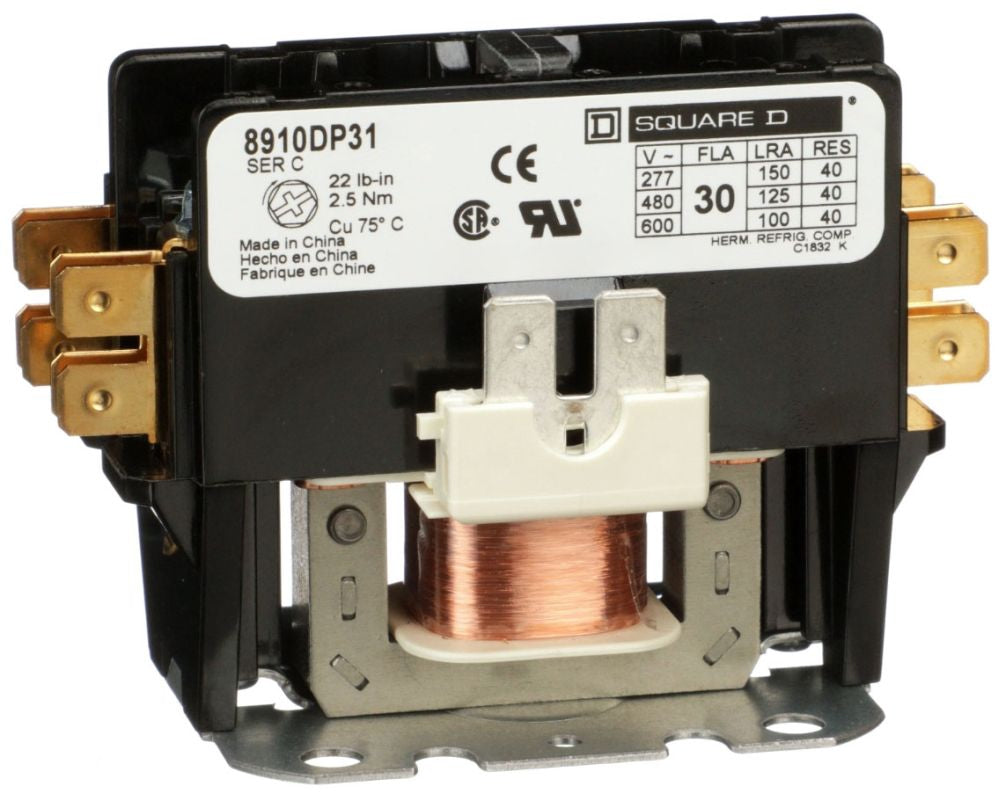

Definite Purpose Contactors are Ideal for HVAC, Heating, Air Conditioning, Refrigeration, Data Processing, Food Service Equipment; Quick Connect Terminals and Binder Head Screws Allow for Easy Wiring; Box Lugs are Standard on Contactors 40 Ampere and Larger; An Exclusive DIN Track Mounting Option May Reduce Installation Costs; Compact Design; Industry Standard Mounting; Double Break Contacts; Straight-Through Wiring 500000 Mechanical Operations; 100000 Electrical Operations on Type DP; Continuous Duty Cycle; Low Cost; RoHS/REACH Compliant; Mercury-Free

Specifications:

Type: Non Reversing
Number of Poles: 1
Power Rating/Voltage: 2 HP at 115 VAC 1 Phase, 3 HP at 230 VAC 1 Phase
Current Rating: 30 Ampere
Resistive Ampere: 40 Ampere
Coil Voltage: 24 VAC at 50/60 Hz
Auxiliary Contact: 1NO
Enclosure: Open
Construction Standard: NEMA
Approval: UL, CSA, CE
