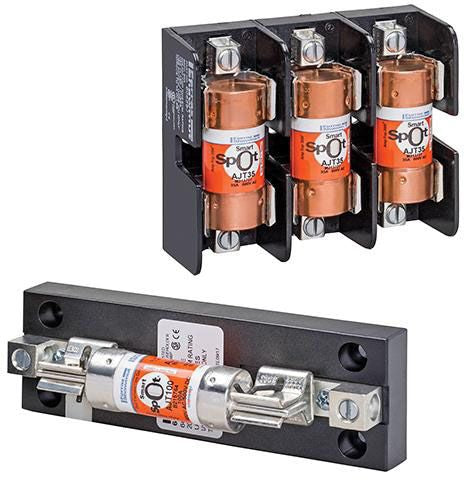

Mersen EP 60301J Fuse Block

A Choice of Screw, Pressure Plate, Box and Special Order Stud Connectors Fit a Wide Range of Stranded or Solid Copper or Aluminum Conductors; Insulators are Either Molded Glass-Filled Polycarbonate (Gap) or Phenol with Verified Dielectric Strength in Excess of 2500V 30A, 60A and the New 100A So Fuse Blocks Feature a Unique Adder Block Configuration Which Can be Snapped Onto 1, 2 or 3-Pole Blocks to Form Multi-Pole Segmented Blocks of as Many Poles as Desired; All Fuse Clips are Made of High Conductivity Tin-Plated Copper with a Choice of Spring-Reinforced or Non-Spring Reinforced Clops; RoHS/REACH Compliant

Specifications:

Type: Barrier
Material: Molded Glass Filled Polycarbonate
Number of Poles: 1
Fuse Type: Class J
Fuse Voltage Rating: 600 VAC
Fuse Current Rating: 30 Ampere
Wire Size: 14 to 2 AWG (Aluminum/Copper)
Terminal Type: Box Lug
Clip Type: Non-Spring Reinforced
Approval: UL, CSA
