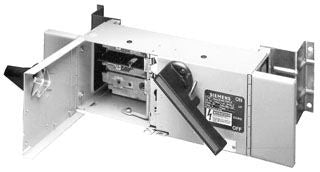

NEMA Phasing; Pressure Terminal Connector; Connection Screw; Quick-Make Quick-Break; Easy Mounting; Padlocking Member; Exclusive Vacuum Breaker Clampmatic Arc Control; Fiber End Barrier; High Pressure Spring Reinforced Copper Fuse Clip; Voidable Cover Interlocks

Specifications:

Type: Fusible
Voltage Rating: 600 Volt AC, 250 Volt DC
Current Rating: 30 Amp
Power Rating: 5 HP (Standard)/15 HP (Maximum) at 480 Volt AC, 7-1/2 HP (Standard)/20 HP (Maximum) at 600 Volt AC
Number of Poles: 3
Wire Size: (1) 14 to 4 AWG (Copper/Aluminum)
Size: 17 Inch Width x 6-3/4 Inch Depth x 7-1/2 Inch Height
Used On: F1/F2 Panel Board, SB1/SB2 Switch Board
Approval: UL E6849
