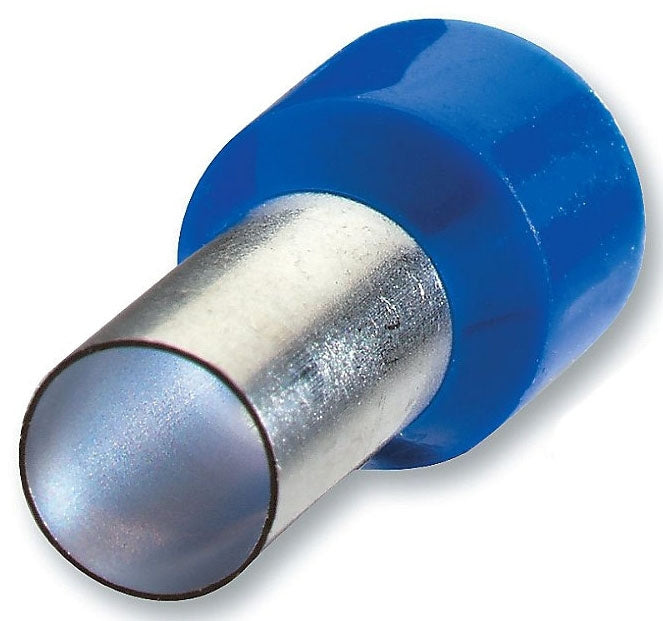

Ferrules Ensure Reliable Electrical Connections When Terminating Conductors in Screw Clamp Terminal Blocks; Fraying and Breaking of Wire Strands is Prevented and the Possibility of an Unreliable Connection is Minimized; Insulated Ferrules Prevent Conductor Breakage Due to Bending, Wire Stress or Vibration, While Facilitating Wire Insertions into the Terminal Block Clamp; Ferrules are the Preferred Alternative to Twisting Wire Stands or Tinning the Wire End before Terminating into a Terminal Block; Ferrules are Thin-Walled Copper Tubes, Which are Mechanically Crimped Onto the Ends of Stranded Wires; They are Easy to Use Simply Strip the Wire, Slide the Ferrule Onto the End of the Wire and Crimp

Specifications:

Type: Insulated Ferrule
Material: Tin Plated Copper
Color: Blue
Construction Standard: DIN
Conductor Size: 14 AWG
Sleeve Length: 0.315 Inch
Sleeve Diameter: 0.091 Inch
Insulation Material: Polypropylene
Size: 0.165 Inch Diameter x 0.591 Inch Length
Standard Package: 10000 per Outer Pack
Approval: UL
