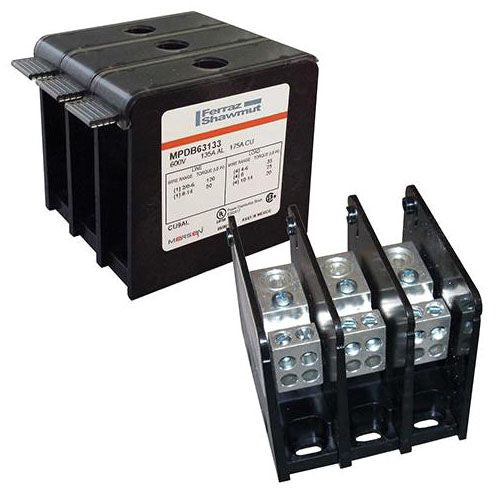

Mersen EP MPDB63163 Power Distribution Block

The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. Unless noted otherwise, all blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code�. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series) and large (MPDB68 and MPDB69 series), in both aluminum and copper.

Specifications:

Type: Open Style
Voltage Rating: 1000 Volt AC/DC
Current Rating: 65 Amp (Aluminum), 85 Amp (Copper), 65 Amp (DLO)
Number of Poles: 3
Number of Primary Openings per Pole: 1
Primary Opening Wire Size: 14 to 4 AWG, 14 to 6 AWG (DLO)
Number of Secondary Openings per Pole: 4
Secondary Opening Wire Size: 14 to 4 AWG, 14 to 6 AWG (DLO)
Conductor Material: Copper/Aluminum
Cover Type: MPDBC6263, Dead Front Polycarbonate Snap-On Hinged Cover
Size: 3.08 Inch Length x 2.91 Inch Width x 2.81 Inch Height
Connector Material: Tin Plated Aluminum
Housing Material: Glass Filled Polycarbonate
Approval: UL 1953, CSA
