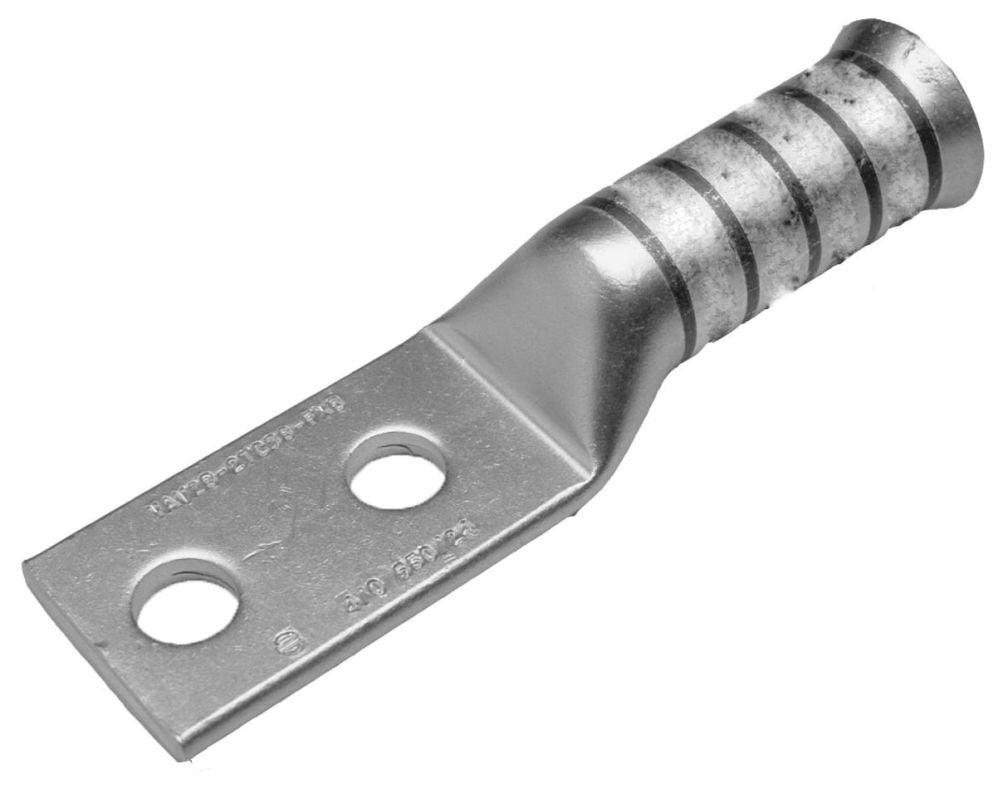

Burndy YA342NFXB Compression Cable Lug

Out of stock
SKU: 235189
Regular price $73.61
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a "Belled" End Opening at the Wire Entry, to Ensure Smooth Insertion of Highly Flexible Stranded Wire, Preventing Possible Damaging of the Wire Strands During Insertion; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Two Hole Tongue/Tang is Recommended When Space Permits as the 2-Hole Feature Minimizes the Terminations from Loosening or Rotating Under Vibration, Movement, or Heat Cycling; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 925/24 Diesel Locomotive Cable, 373.7 KCMIL Class G/H/I/M (Flex), 350 KCMIL Stranded (Nom)
Barrel Type: Long, Belled, Standard, Straight
Barrel Length: 2.48 Inch
Pad Size: 1.55 Inch W x 0.23 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Blue
Die Index: 19
Material: Electro-Tin Plated Copper
Overall Length: 6.29 Inch
Approval: UL, CSA
