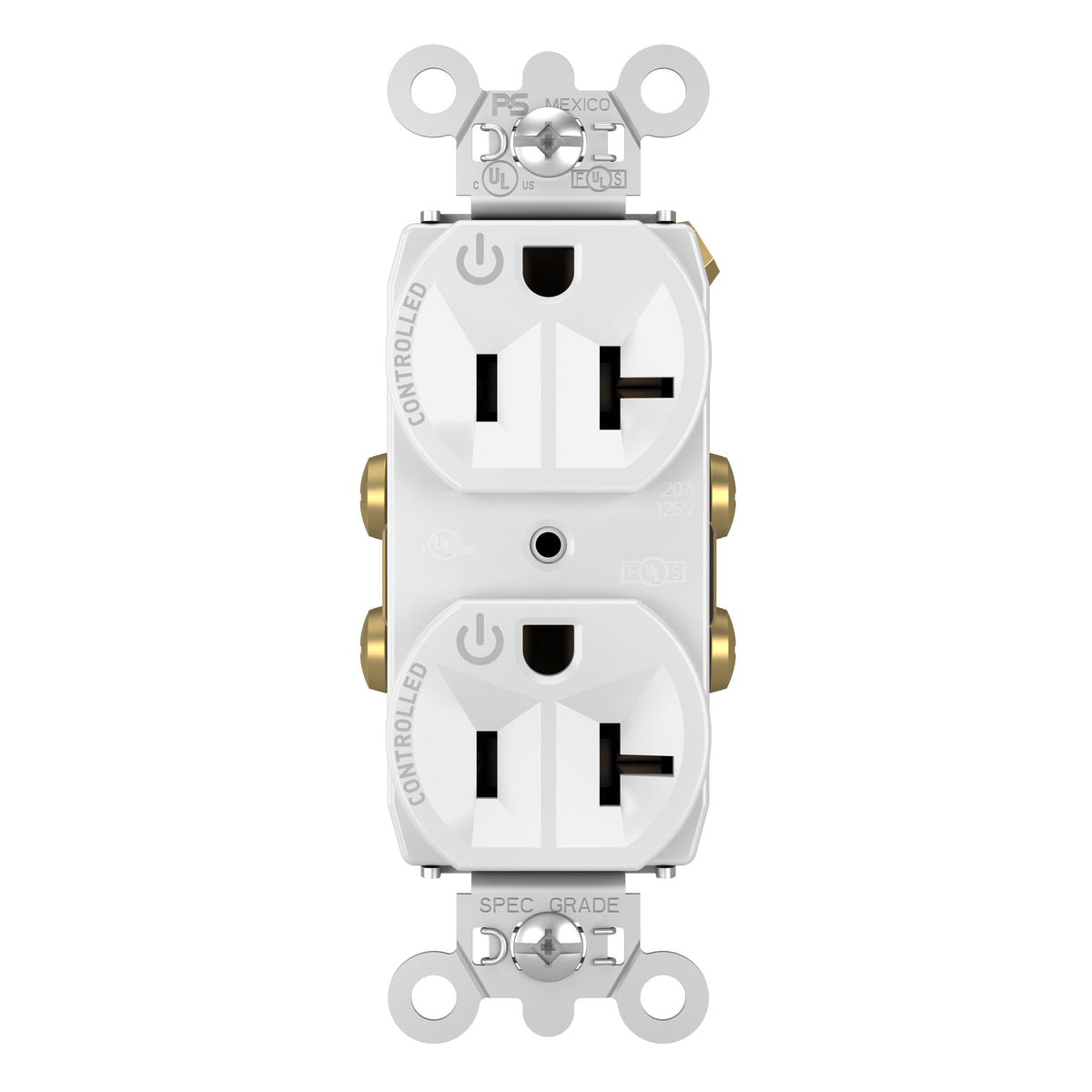

Pass & Seymour 5362CD-W Duplex Receptacle

  • Sale
  • Regular price $7.06
  • 1 available
Shipping calculated at checkout.


Permanent Controlled Receptacle Marking Allows for Long-Lasting, Easy Identification of Controlled Receptacle for End User; Can Be Wired to Any Number of System Based or Stand Alone Plug Load Control Solution; Corrosion Resistant Plated and Tabbed Steel Strap Locked into Face and Back Body to Resist Pulling Away from Face/Body Assembly; Easily Accessed Break Off, Line Contact Connecting Tab for Fast, Easy Split Circuit Wiring; Terminal Compartment Isolated from Each Other for Positive Conductor Containment; Auto Ground Clip Assures Positive Ground; Tri Drive Terminal and Mounting Screw

Specifications:

Type: Duplex, Straight Blade
Constructional Feature: Corrosion Resistant
Configuration: NEMA 5-20R
Voltage Rating: 125 VAC
Current Rating: 15 Ampere
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Material: High Impact Resistant Nylon (Face), PVC (Back Body), Stainless Steel (Auto Ground Clip)
Color: White
Wiring: Side, Back
Grade: Commercial
Approval: UL 498, CSA C22.2
