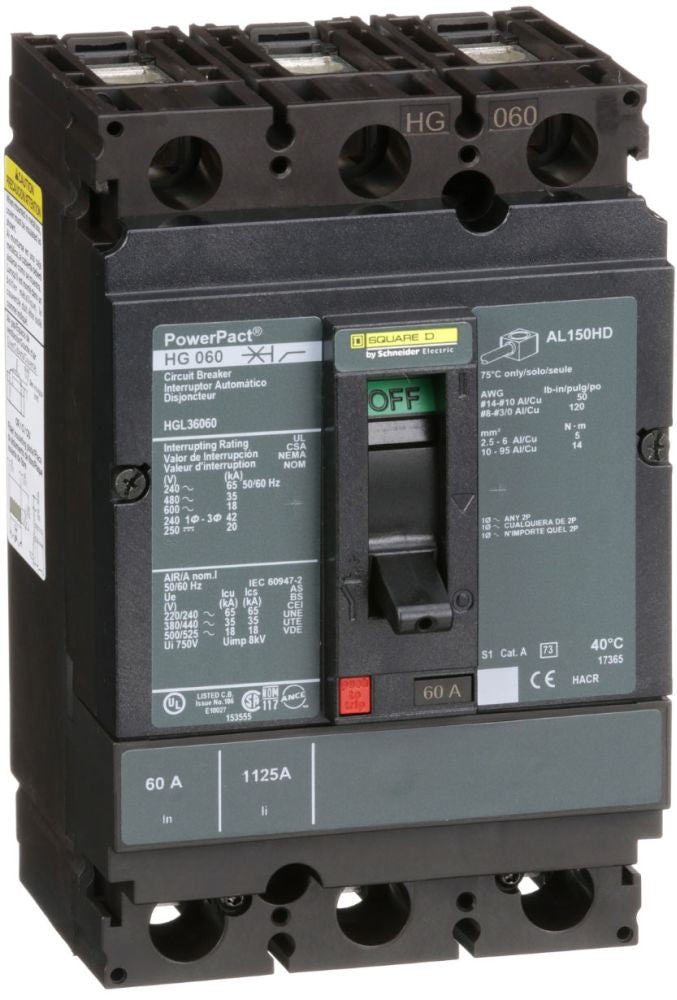

The Powerpact H-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits; H-Frame Circuit Breakers are Either Thermal-magnetic or Micrologic Electronic Trip Units; H-Frame Circuit Breakers with Thermal-Magnetic Trip Units Contain Individual Thermal (Overload) and Instantaneous (Short Circuit) Sensing Elements in Each Pole; The Amperage Ratings of the Thermal Trip Elements are Calibrated at 104 Deg F Free Air Ambient Temperature Per NEC and the Canadian Electrical Code; Powerpact H-Frame Circuit Breakers High Performance and a Wide Range of Interchangeable Trip Units to Protect Most Applications; HACR/SWD/HID Rated; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product

Specifications:

Type: Molded Case, Thermal Magnetic
Frame Type: H
Voltage Rating: 240/480/600 VAC at 50/60 Hz (UL/CSA/NOM), 220/240/380/440/415/500/525 VAC at 50/60 Hz (IEC), 250 VDC (UL/CSA/NOM/IEC), 500 VDC (UL/CSA/NOM)
Maximum AC Voltage Rating: 600 V
Maximum DC Voltage Rating: 500 V
Current Rating: 60 Ampere
Number of Poles: 3
Interrupting Rating: 65 Kiloampere at 240 VAC, 35 Kiloampere at 480 VAC, 18 Kiloampere at 600 VAC (UL/CSA/NOM), 65 Kiloampere at 220/240 VAC, 35 Kiloampere at 380/440/415 VAC, 18 Kiloampere at 500/525 VAC (IEC), 20 Kiloampere at 250 VDC (UL/CSA/NOM/IEC), 20 Kiloampere at 500 VDC (UL/CSA/NOM)
Terminal Type: Line Lug, Load Lug

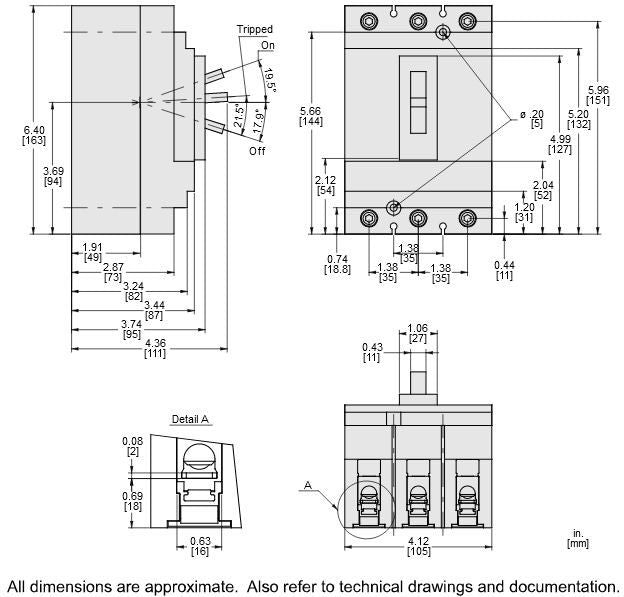

Size: 4.12 Inch W x 4.36 Inch D x 6.4 Inch H
Approval: UL, CSA
