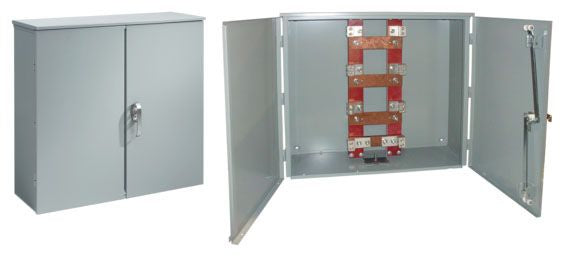

Hoffman Enclosures A800HCT1R Current Transformer Cabinet
Regular price
$1,850.36
Couldn't load pickup availability
Overlapping Double-Door Model with 3-Point Latch and Lift-Off Hinges; Door Stop Provision Included; Includes Padlock Provisions in Handle; Mild Steel Hinges; Use with Window-Type Current Transformer; Drip-Shield Top and Seam-Free Sides, Front and Back; Three Removable Copper Buss Bar; RoHS/REACH Compliant
Specifications:
Cover Type: Two Door with 3-Point Latch, Lift-Off Hinged
Height: 36 Inch
Width: 36 Inch
Depth: 11 Inch
Material: Steel
Material Specification: 14 Gauge
Color: ANSI 61 Gray
Finish: Galvanized, Polyester Powder Painted
Enclosure: NEMA 3R, IP32
Approval: UL 50, UL 414, CUL, CSA C22.2
