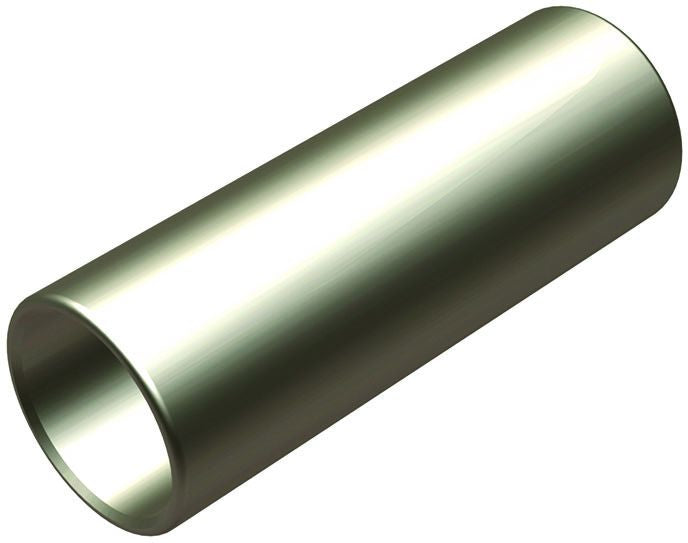

Type Y-R reducing adapter has been designed to allow large size, long barrel, copper HYDENT, HYSPLICE, and HYTEE terminals, splices and T-taps to be used on small conductor sizes. To use, simply insert the reducer into the barrel, insert the wire into the reducer adapter and crimp the outer barrel using its recommended tooling.

Specifications:

Type: Reducing Adapter
Voltage Rating: 600 V to 35 KV
Conductor Material: Copper
Side A Conductor Size: 600 KCMIL
Side B Conductor Size: 500 KCMIL
Length: 2.69 Inch
Material: Tin Plated Copper
