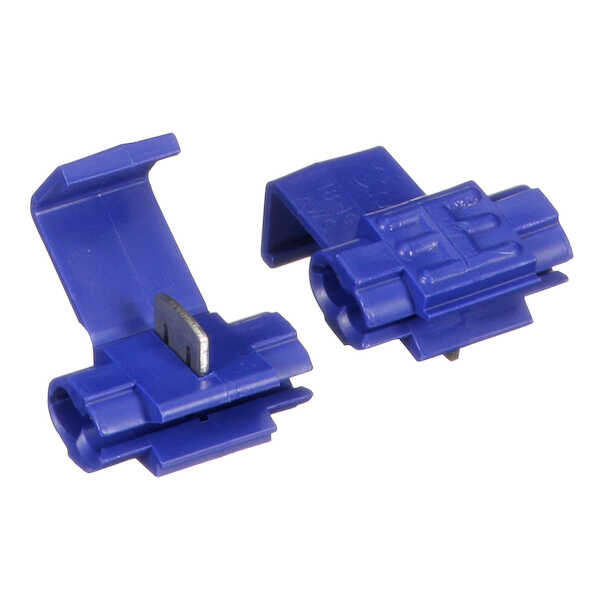

Scotchlok 560B-BOX Electrical Wire IDC Connector

  • Sale
  • Regular price $0.22
Shipping calculated at checkout.


The 3Mâ„¢ Scotchlokâ„¢ Electrical Connector Idec 560B Electrically Connects a (Tap) Wire End to a through (Run) Wire and Insulates the Connection; For General Purpose Electrical Connections on Auto, Boat, Van or Trailer; Used for Tap and Parallel Splicing; RoHS Compliant; Made in USA

Specifications:

Voltage Rating: 600 Volt
Wire Size: 18 to 16 AWG (Solid/Stranded), 14 AWG (Stranded)
Connection Type: Double Run/Tap
Maximum Insulation: 0.145 Inch
Color: Blue
Temperature Rating: 194 Deg F
Standard Package: 100 per Carton
Approval: UL
