Scotchlok 567-BOX Electrical Wire IDC Connector

  • Sale
  • Regular price $0.55
Shipping calculated at checkout.

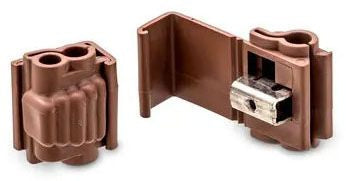

3Mâ„¢ Scotchlokâ„¢ Insulation Displacement Connector 567 Electrically Connects a Tap Wire to a Run (Through) Wire While Insulating the Connection; This Connector is Suitable for Control Circuit Wiring, Fixture Wiring, Appliance Wiring, Signal and Pa Systems and Automotive/Boat/Rave Wiring; Polypropylene Insulated and Self-Stripping; RoHS Compliant; Made in USA

Specifications:

Voltage Rating: 600 Volt
Wire Size: 18 to 14 AWG (Tap), 12 to 10 AWG (Run)

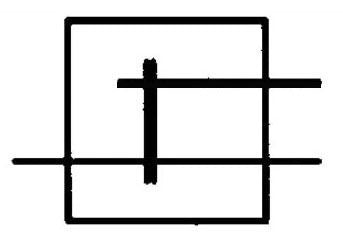

Connection Type: Run and Tap
Maximum Insulation: 0.145 Inch (Tap), 0.19 Inch (Run) Outer Diameter
Color: Brown
Temperature Rating: 105 Deg C
Standard Package: 1000 per Case
Approval: UL 486C, CSA C22.2
