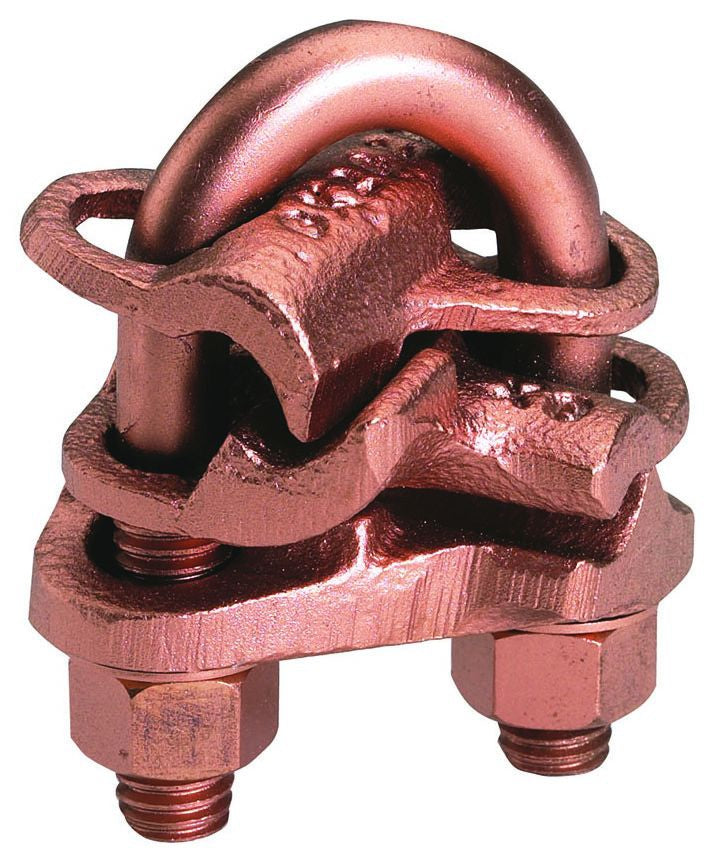

Burndy GX2929 Mechanical Grounding Connector

High Copper Alloy Ground Connector for Cross Connecting a Wide Range of Cable; The High Copper Alloy Cast Body, Durium U-Bolts, Nuts, Lock Washer Make the GX Suitable for Burial in Soil or Concrete; 1-Wrench Installation; Acceptable for Direct Burial in Earth or Concrete; RoHS Compliant

Specifications:

Conductor Size: 2/0 to 4/0 AWG Solid, 1/0 AWG to 250 KCMIL Stranded (Copper, Run), 2/0 to 4/0 AWG Solid, 1/0 AWG to 250 KCMIL Stranded (Copper, Tap)
Rod Size: 1/2 Inch

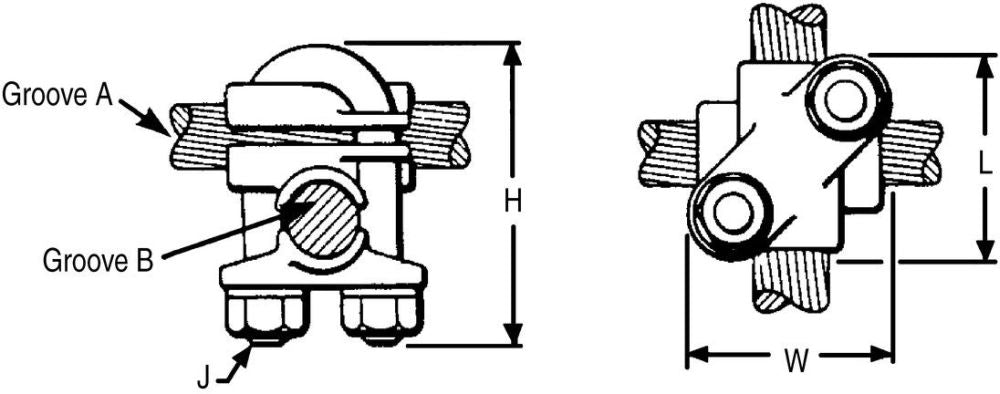

Size: 1-7/8 Inch L x 1-7/8 Inch W x 2-3/4 Inch H
Installation: U-Bolt to Rod
Material: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher
Approval: UL 467
Used On: Copper Cable to Rod, Direct Burial
